SMARTNOVA UHF antenna (LTE700, 2nd Digital Dividend), 360º reception for campers or ships
The automatic antenna for campers who choose to enjoy their time
Intelligent antenna with 360º reception of DTT signals in short term stays (campers, ships...) where quick and easy installation is essential. SmartNova offers a double gain of other traditional omnidirectional antennas as it is internally composed of 3 directional sub-antennas arranged at 120º, thus covering a total pointing to the entire horizon.
In addition, this antenna is very resistant to both UV rays and adverse weather conditions due to its protective plastic radome. This element also gives it a nice, discreet and low visual impact design.

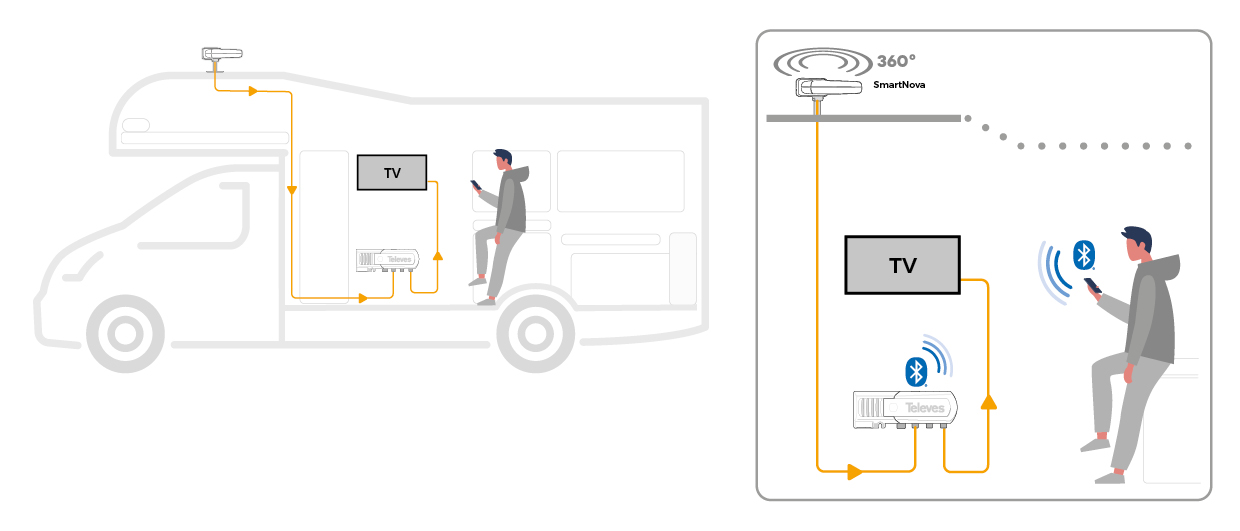

SmartNova offers the best signal quality thanks to the intelligence incorporated in the antenna, which processes each DTT channel individually so that they are adjusted and balanced at optimum levels, in addition to achieving high selectivity between them. Programming and adjustment of the antenna is done wirelessly (Bluetooth®) via the ASuite app, using a smartphone. The included autoprogramming function allows channel programming and adjustment to be performed in seconds.
Provided with a full installation kit consisting of:
- 9.5V antenna power supply unit, with Jack connector
- 12V power supply unit for AC power (220-230V~)
- Straight bracket for antenna installation
- 3 F-connectors (ref. 4171xx)
- Screws with assembly wrench for mast mounting
RED compliant
- 360° omnidirectional reception: consisting of 3 sub-antennas arranged at 120º, it receives from all directions without the need to be directed
- Multiply the output level x2: the use of multiple directive sub-antennas provides superior antenna gain, easily doubling the output signal level, compared to other omni-directional antennas on the market
- More stable reception: its smart gain system is able to withstand signal variations or fading without affecting the TV installation
- High selectivity: its 32 filters balance the channels seamlessly, achieving up to 28dB of selectivity between adjacent channels
- Automatic configuration in seconds: the user can launch the ‘Autoprogramming’ option from his own smartphone, using the ASuite app and Bluetooth®. The antenna will programme and adjust all channels in a balanced way
- Battery saving: Antenna power can be turned off with the ASuite app, eliminating power consumption when not in use. The antenna keeps its configuration when it is switched on again and does not need to be autoconfigured again
- Protected against 4G/5G: its anti-LTE filter rejects telephone interference from channel 48 onwards
- Flexible power supply: the power supply unit with jack plug can be connected to a conventional mains power supply or to the vehicle battery
- Robust and discreet design: its low visual impact radome is completely watertight and weatherproof (IP53), preventing degradation over time
NOVA Series:
A special antenna series to be installed in restrictive locations.
- Known for their pleasing low-impact visual design and ideal for installations where good aesthetics are key.
- LTE ready: they integrate an LTE electronic filter to remove cell phone interference
- Built with materials that are highly resistant to salt air, humidity and other adverse climatic elements, with a protection index of 53.
- Low power consumption and easy mounting. Furthermore, they can be purchased as full kits including all the accessories required for their installation.
- Manufactured in Europe, our products undergo the most stringent quality controls, providing high reliability.
Bands |
| ||
---|---|---|---|
Frequency range | MHz |
| |
Channels |
| ||
Gain | dBi |
| |
Output level |
| ||
Polarisation | Horizontal | ||
Powering | Vdc | 9.5 | |
Max. current | mA | 600 | |
Protection index (IP) | 53 | ||
Wind load (@130Km/h) | N | 74.88 | |
Wind load (@150Km/h) | N | 102.96 | |
PSU frequency range TV-MIX | MHz | 47 ... 862 | |
PSU frequency range SAT-MIX | MHz | 950 ... 2150 | |
PSU output voltage | Vdc | 9.5 | |
Max PSU output current | mA | 600 | |
PSU insertion losses | dB | < 2 | |
PSU input voltage | Vdc | 12 ... 24 | |
Max. output power from the PSU | W | 6.7 | |
PSU protection index | 20 | ||
PSU operating temperature | °C | -5 ... 45 | |
PSU DC pass through SAT-MIX input | mA | 500 |
*1 The gain varies automatically depending on the output level.
Physical data
Net weight: 1,800 g
Gross weight: 2,222 g
Width: 320 mm
Height: 105 mm
Depth: 290 mm
Main product weight: 1,135 g
Packing
Box 1 Units
Box 1 Units
