Overlight Optical Receiver with 2 SAT+Terr. Outputs FM/DAB/UHF/SAT

Optical satellite and terrestrial receiver designed for 2-satellite and DTT installations. From its fiber input, it can capture combined optical TV signals (1200...1600nm) and subsequently, process and restore the original terrestrial and satellite TV signals, which it sends through its 2 coaxial outputs: DTT+SAT1 - DTT+SAT2, corresponding to two different satellite downcomers.

Thanks to its optimized electronics and low losses, it allows to reduce the number of amplifiers required and simplifies deployment in the design of collective installations, preserving the signal quality throughout the process. Furthermore, it is fully indicated for use in GPON installations.

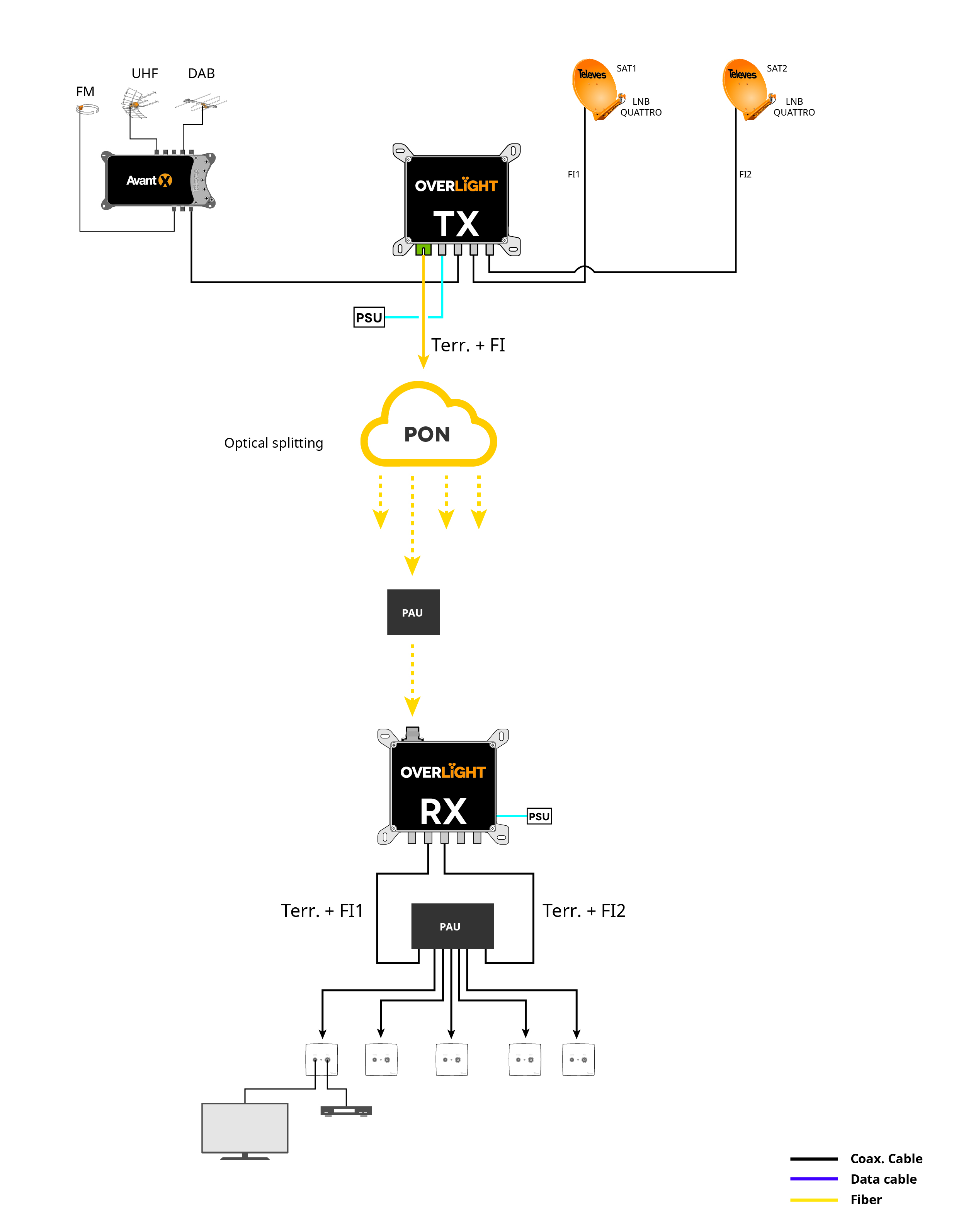

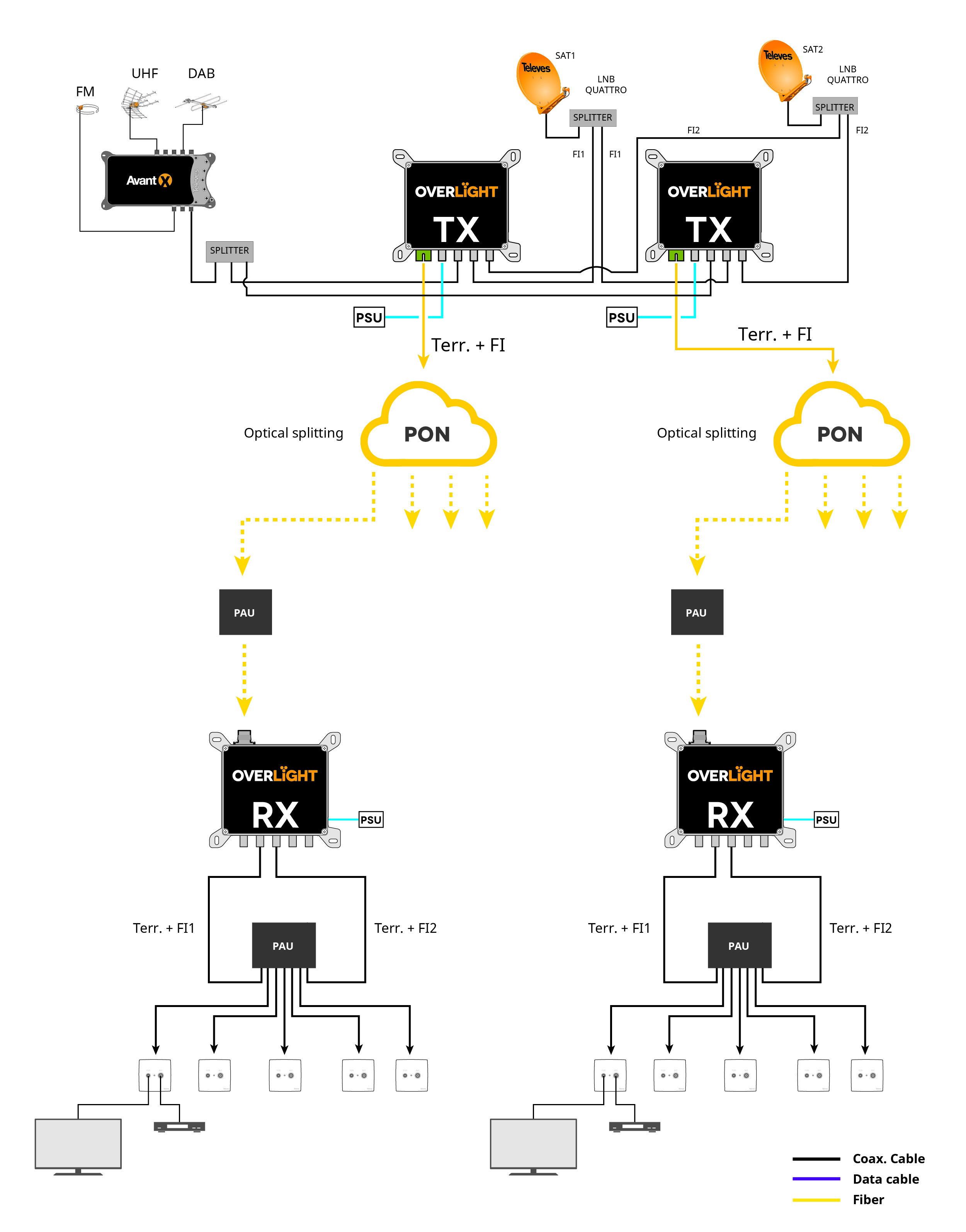

This device is part of the Overlight system, that distributes satellite and terrestrial signals to multiple users through a single optical fiber.

This product is certified with the European IRS Certification Scheme mark, representing that it has passed the relevant test as set out in the latest EICS test specification, available from the DTG or CAI.
