NanoKom mast amplifier (LTE790, 1st Digital Dividend) 3 inputs: BIII-UHF-FMmix

NanoKom mast amplifier (LTE790, 1st Digital Dividend) 3 inputs: BIII-UHF-FMmix

NanoKom mast amplifier (LTE790, 1st Digital Dividend) 3 inputs: UHF-UHF-VHFmix

Masthead amplifier for the amplification and combination of terrestrial television signals coming from several antennas.

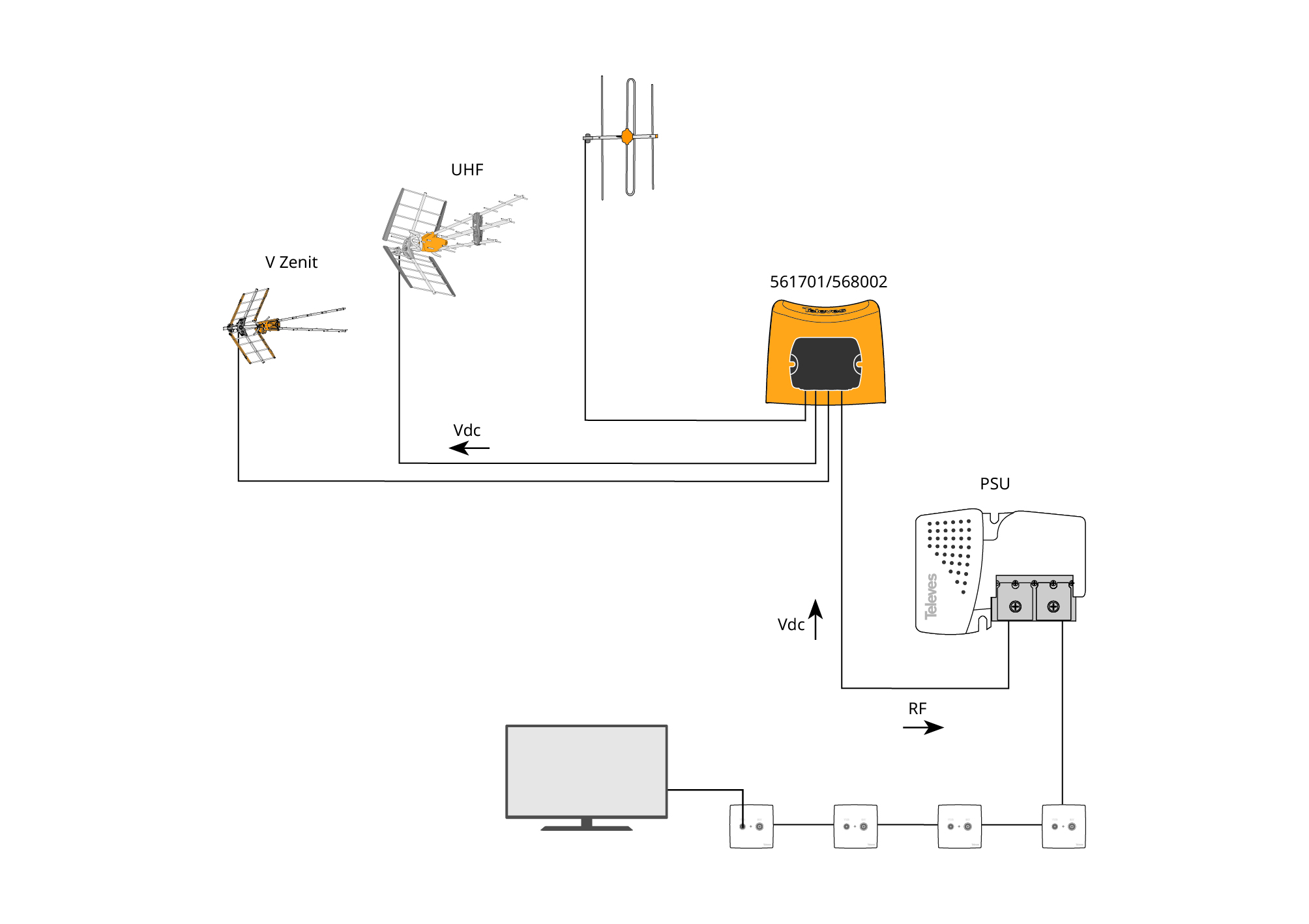

Equipped with 3 inputs: the signals on both UHF inputs are amplified, whereas the VHF signal is only combined. The amplifier is powered through the output coaxial cable.

RED compliant

Ref. 561701
EAN13: 8424450161005
Highlights
  • Separate amplification and very low noise figure, thus respecting signal quality
  • Ultra-small ergonomic design
  • EasyF connection system
  • Can be powered in the 12 V-to-24 V range
  • Fully automated manufacturing, subject to the most stringent quality controls
  • High-screening Zamak chassis

Main features
  • LTE filter to remove mobile phone interference
  • ON/OFF switch to allow DC pass towards one of the UHF inputs for the powering of a BOSS system
  • Easy mounting. Equipped with a clamp for mast mounting
  • Resistant ABS-plastic orange case for outdoor installation

Discover

EasyF connection system: simplicity and savings

EasyF is an innovative connection concept where the inner conductor of the coaxial cable is directly inserted in the device, thus improving connection reliability. Thanks to the absence of F connectors, the chassis can be reduced and the connection of two cables secured with a a single screw.

  • Real time savings: speeding the installation is possible without the need for coaxial cable termination. Furthermore, there is no need for screwing the connectors on the device, which is sometimes difficult when there is little room
  • Connection reliability: the clamp holding the cables prevents the coaxial cable to come off
  • Cost savings: no additional connectors are required (neither F nor IEC)
  • Space optimization: inputs and outputs are always on the same side of the device to prevent coaxial cables from bending, and to make working inside cabinets and register boxes easier
  • Very easy three-step mounting: only screwing and unscrewing the covers is required to connect both cables:

1. Unscrew the device's cover to access the connection

2. Insert the previously stripped coaxial cables

3. Close the cover and screw to ensure connection

Learn more about EasyF system reliability

With EasyF, the connection between the coaxial cable and the device is carried out using an automated system for contact insertion of the inner conductor, without any soldering.

  • Always as new: the device's operating life increases when the factor of solder wearing out with time is removed
  • Failure rate reduction: usually produced as a result of cold soldering joints
  • Electromagnetic behaviour optimization: for high frequencies
  • Our commitment with environment is reinforced: pollution caused by the welding process is eliminated and production power consumption is reduced

Bands
VHFUHF
Frequency rangeMHz
47 ... 254470 ... 790
GaindB
-1.5 28
Gain adjustment rangedB
--0 ... 20
Output level DIN45004BdBμV
--108
Output level EN50083dBμV
--115
Noise figuredB
--6.5
Number of inputs3
Inputs/Bands
VHFUHF 1UHF 2
Max current inputmA
0 0 40
PoweringVdc 12 ... 24
Protection index (IP)23
Operating temperature°C -5 ... 45

Physical data

Net weight: 201 g

Gross weight: 201 g

Width: 88 mm

Height: 76 mm

Depth: 42 mm

Main product weight: 201 g

Packing

Box 1 Units

Carton 10 Units

Bucket 100 Units

More Information
tlv_tags

EasyF connection system: simplicity and savings

EasyF is an innovative connection concept where the inner conductor of the coaxial cable is directly inserted in the device, thus improving connection reliability. Thanks to the absence of F connectors, the chassis can be reduced and the connection of two cables secured with a a single screw.

  • Real time savings: speeding the installation is possible without the need for coaxial cable termination. Furthermore, there is no need for screwing the connectors on the device, which is sometimes difficult when there is little room
  • Connection reliability: the clamp holding the cables prevents the coaxial cable to come off
  • Cost savings: no additional connectors are required (neither F nor IEC)
  • Space optimization: inputs and outputs are always on the same side of the device to prevent coaxial cables from bending, and to make working inside cabinets and register boxes easier
  • Very easy three-step mounting: only screwing and unscrewing the covers is required to connect both cables:

1. Unscrew the device's cover to access the connection

2. Insert the previously stripped coaxial cables

3. Close the cover and screw to ensure connection

Learn more about EasyF system reliability

With EasyF, the connection between the coaxial cable and the device is carried out using an automated system for contact insertion of the inner conductor, without any soldering.

  • Always as new: the device's operating life increases when the factor of solder wearing out with time is removed
  • Failure rate reduction: usually produced as a result of cold soldering joints
  • Electromagnetic behaviour optimization: for high frequencies
  • Our commitment with environment is reinforced: pollution caused by the welding process is eliminated and production power consumption is reduced
tlv_reflog MVM327LTE
tlv_tabla_especificaciones
Bands
VHFUHF
Frequency rangeMHz
47 ... 254470 ... 790
GaindB
-1.5 28
Gain adjustment rangedB
--0 ... 20
Output level DIN45004BdBμV
--108
Output level EN50083dBμV
--115
Noise figuredB
--6.5
Number of inputs3
Inputs/Bands
VHFUHF 1UHF 2
Max current inputmA
0 0 40
PoweringVdc 12 ... 24
Protection index (IP)23
Operating temperature°C -5 ... 45
tlv_ean 8424450161005
tlv_dim_product_x 88
tlv_dim_product_x_label Width
tlv_dim_product_x_unit mm
tlv_dim_product_y 76
tlv_dim_product_y_label Height
tlv_dim_product_y_unit mm
tlv_dim_product_z 42
tlv_dim_product_z_label Depth
tlv_dim_product_z_unit mm
tlv_weight_product_label Main product weight
tlv_weight_product 201
tlv_weight_product_unit g
tlv_gross_weight_label Gross weight
tlv_gross_weight 201
tlv_gross_weight_unit g
tlv_net_weight_label Net weight
tlv_net_weight_unit g
tlv_net_weight 201
tlv_1_type_pack Box
tlv_1_type_pcs_pack Units
tlv_1_pcs_pack 1
tlv_2_pcs_pack 10
tlv_2_type_pack Carton
tlv_2_type_pcs_pack Units
tlv_3_pcs_pack 100
tlv_3_type_pack Bucket
tlv_3_type_pcs_pack Units
