Compression

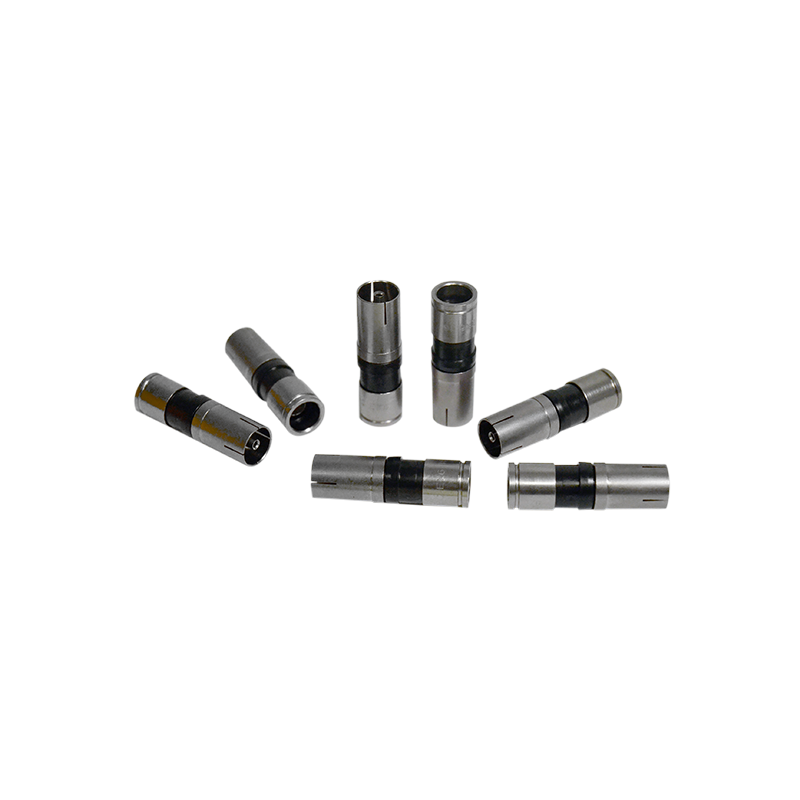

Connectors (75 Ohm) Compression

IEC type

Also known as "9.52" (Ø)

  • To be installed on coaxial cable
  • Compatible with the whole TV band, despite being usually associated with terrestrial
  • The connection may be either male or female

IEC compression connector Cables: SK2000plus, SK2003plus, SK110plus, SK100plus, SK6Fplus, T100plus, T100, CXT-1

3818,3819

F type

F universal connection:

  • To be installed on coaxial cable
  • Compatible with the whole TV band, despite being usually associated with satellite
  • The connection is always male

F compression connector Cables: T100plus, T100, CXT-1, CXT-60

4104

F compression connector Micro-cables: CXT-5, CXT-50, SK0837plus

4105

F compression connector EK1672plus TR-165 underground cable

4106

F compression connector TSH cables SK2000plus, SK2003plus, SK110plus, SK100plus, SK6Fplus

3802

F compression connector T200plus cable

410801

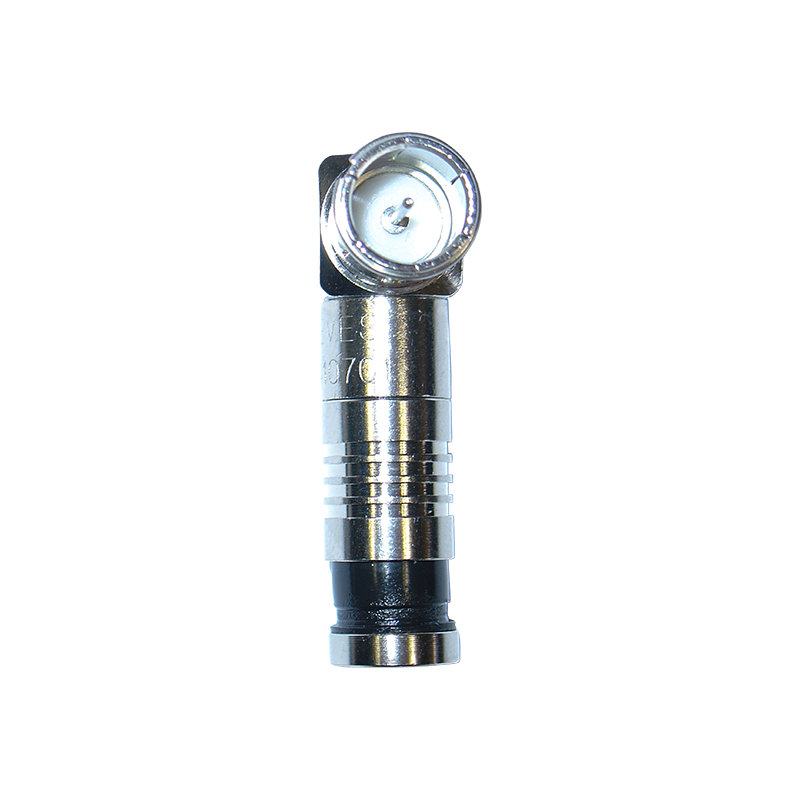

Elbowed, F compression connector Cables: T-100 and CXT-60

410901

“Quick F” type

Type F connection but quick installation; in other words, without screwing

  • To be installed on coaxial cable
  • Compatible with the whole TV band, despite being usually associated with satellite
  • F connection, but without screw thread (quick)
  • The connection is always male

Elbowed, Quick F compression connector Cables: SK2000plus, SK2003plus, SK110plus, SK100plus, SK6Fplus, T100plus, T100, CXT, CXT-1, CXT-60

410701,410702

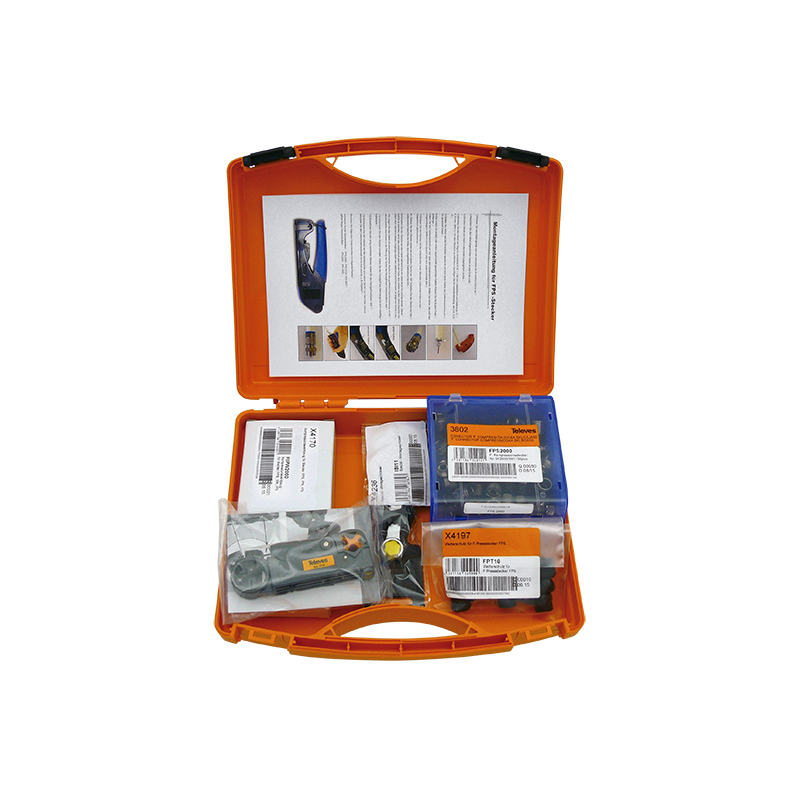

Kits

Professional kits with compression connectors and other accessories

Compression connection kit F type - For triple shielding (TSH) coaxial cables

216401

Compression connection kit F type - For double shielding coaxial cables

216403
