Upper section 1m, Hot-Dip Galvanizing 180 tower
1 m upper section for the erection of a 180 tower.
- Anchoring system with union nuts
- Easy and quick mounting
- Fully automated soldering
- 180 tower maximum height: 26.5 m (as per calculation conditions)
- The hot-dip galvanizing surface treatment provides enhanced durability in adverse corrosion conditions
- Grey finish
- Mast max. diameter: 46 mm
- Main tubes of 20*2 mm and transverse rods of 6 mm
| Surface facing the wind | m² | 0.083 |
|---|
Physical data
Net weight: 3,097 g
Gross weight: 3,492 g
Width: 160 mm
Height: 993 mm
Depth: 138 mm
Main product weight: 3,097 g
Packing
Unit 1 Units
| tlv_tabla_especificaciones |
|
|||
|---|---|---|---|---|
| tlv_ean | 8424450321072 | |||
| tlv_dim_product_x | 160 | |||
| tlv_dim_product_x_label | Width | |||
| tlv_dim_product_x_unit | mm | |||
| tlv_dim_product_y | 993 | |||
| tlv_dim_product_y_label | Height | |||
| tlv_dim_product_y_unit | mm | |||
| tlv_dim_product_z | 138 | |||
| tlv_dim_product_z_label | Depth | |||
| tlv_dim_product_z_unit | mm | |||
| tlv_weight_product_label | Main product weight | |||
| tlv_weight_product | 3,097 | |||
| tlv_weight_product_unit | g | |||
| tlv_gross_weight_label | Gross weight | |||
| tlv_gross_weight | 3,492 | |||
| tlv_gross_weight_unit | g | |||
| tlv_net_weight_label | Net weight | |||
| tlv_net_weight_unit | g | |||
| tlv_net_weight | 3,097 | |||
| tlv_1_type_pack | Unit | |||
| tlv_1_type_pcs_pack | Units | |||
| tlv_1_pcs_pack | 1 |

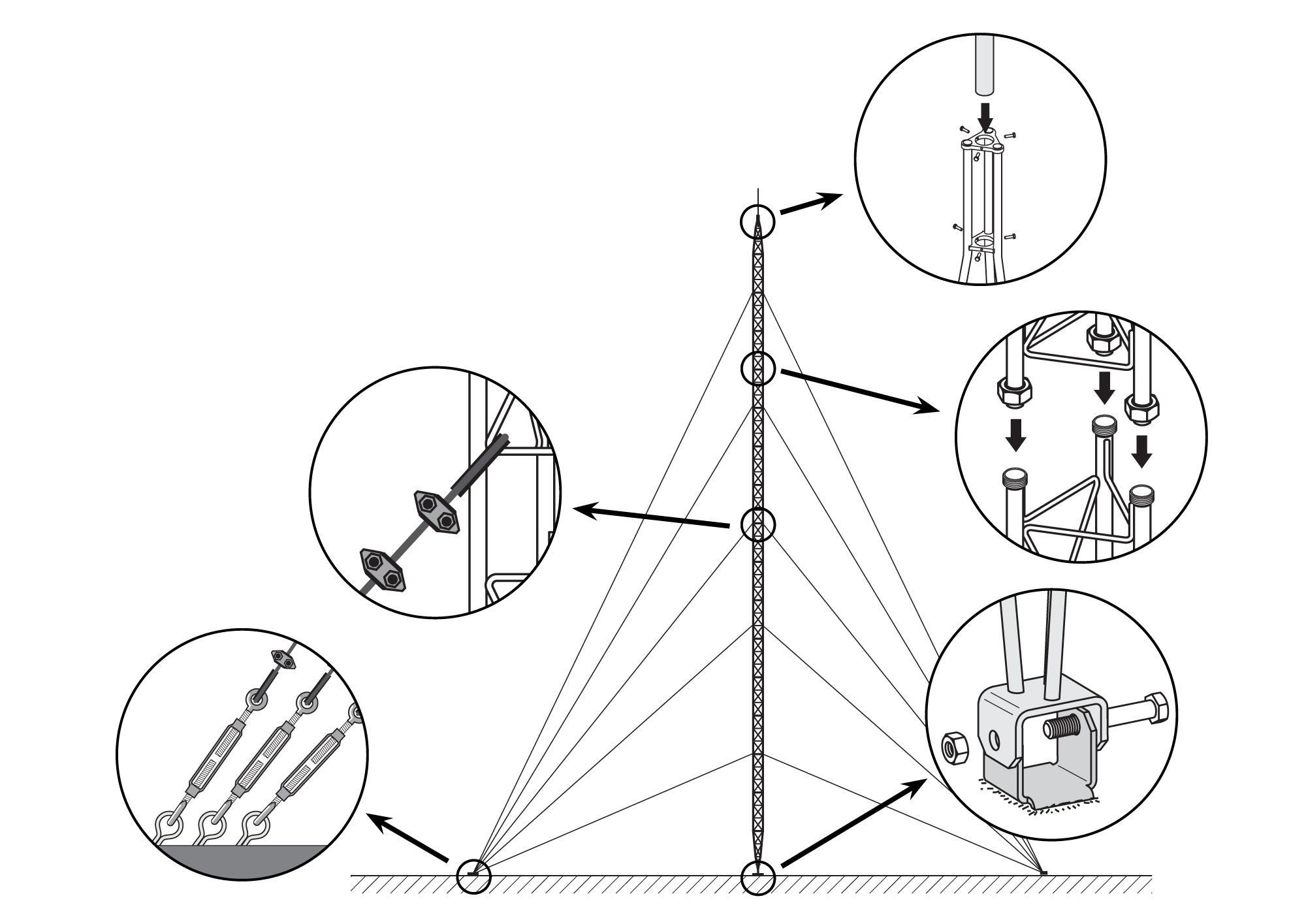

Mounting details
It consists in fixing the lower section to the base, set it in upright position and levelling it. The subsequent Middle Sections are then mounted, equipped with the appropriate guy wires; the mounting is carried out by climbing on the previously mounted sections and hoisting the new section with the help of the appropriate lifting tools.
