Data/Coaxial/fiber Terminal Enclosure with flexible front frame Coaxial, data, telephone and optical fiber cable
The frame is independent of the chassis, which facilitates its installation without damaging the frame or the door.
- Robust: made of steel.
- Simplifies on-site installation: equipped with a front frame, separated from the chassis
- Pre-marked inputs for an easy opening: 16 inputs for 32mm-tube and 16 inputs for 20mm-tube
- Up to 8cm depth, that makes it suitable to be embedded also on non-load-bearing partition walls (with thickness 8-12cm)
- Perforated door for better ventilation with an ABS locking tab (can be manually operated by the user)
- MDF board for product bolting (dimensions: 520x420x12mm)
- Chassis dimensions: 600x500x80mm
- Frame + door dimensions: 640x540x90mm
- Lacquered white
- Interchangeable door (left or right hinge)

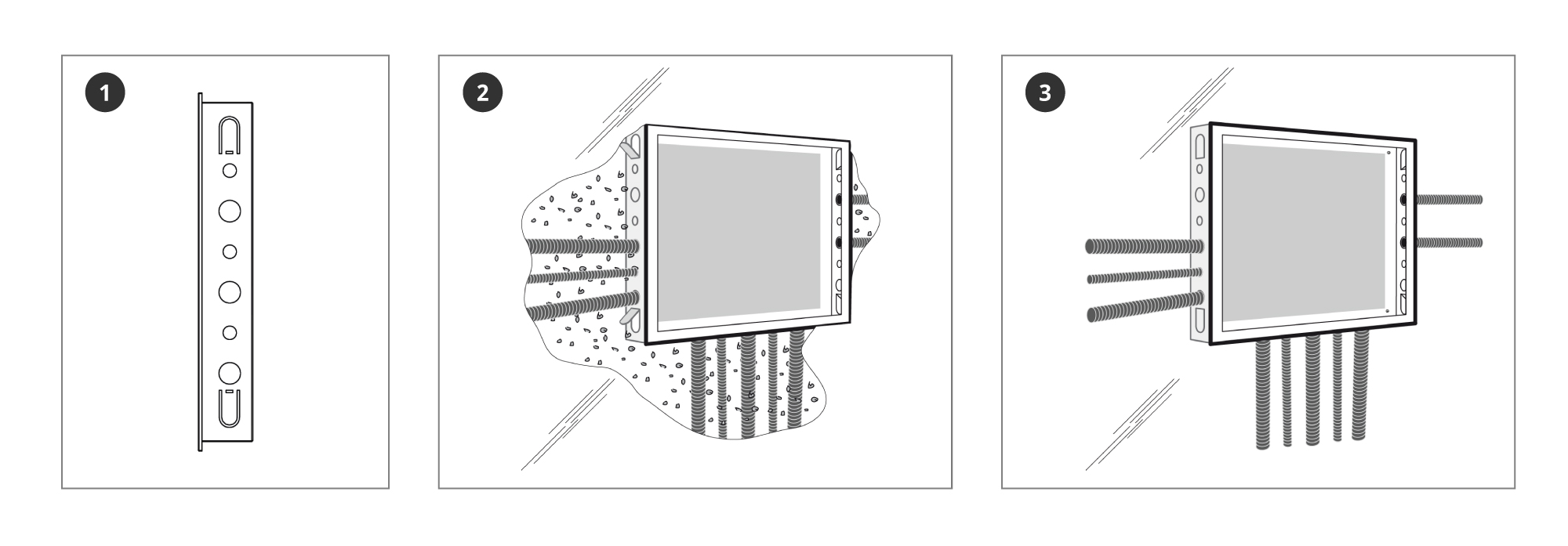

- Chassis with lateral tabs that allow its fixing on the wall while the mortar is being applied
- Includes a ground connection between the door and the chassis
| Front door locking system | Key Lock, one-point lock | |
|---|---|---|
| Installation type | Wall built-in | |
| Grounding | Yes | |
| Type of ventilation | No ventilation | |
| Material | Steel | |
| Thickness | mm | 1.5 |
| Colour | White | |
| Height | mm | 540 |
| Width | mm | 640 |
| Depth | mm | 80 |
Physical data
Net weight: 8,522 g
Gross weight: 8,522 g
Width: 640 mm
Height: 540 mm
Depth: 90 mm
Main product weight: 8,522 g
Packing
Box 1 Units
| tlv_reflog | GH65 | ||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tlv_tabla_especificaciones |
|
||||||||||||||||||||||||||||||
| tlv_ean | 8424450178072 | ||||||||||||||||||||||||||||||
| tlv_dim_product_x | 640 | ||||||||||||||||||||||||||||||
| tlv_dim_product_x_label | Width | ||||||||||||||||||||||||||||||
| tlv_dim_product_x_unit | mm | ||||||||||||||||||||||||||||||
| tlv_dim_product_y | 540 | ||||||||||||||||||||||||||||||
| tlv_dim_product_y_label | Height | ||||||||||||||||||||||||||||||
| tlv_dim_product_y_unit | mm | ||||||||||||||||||||||||||||||
| tlv_dim_product_z | 90 | ||||||||||||||||||||||||||||||
| tlv_dim_product_z_label | Depth | ||||||||||||||||||||||||||||||
| tlv_dim_product_z_unit | mm | ||||||||||||||||||||||||||||||
| tlv_weight_product_label | Main product weight | ||||||||||||||||||||||||||||||
| tlv_weight_product | 8,522 | ||||||||||||||||||||||||||||||
| tlv_weight_product_unit | g | ||||||||||||||||||||||||||||||
| tlv_gross_weight_label | Gross weight | ||||||||||||||||||||||||||||||
| tlv_gross_weight | 8,522 | ||||||||||||||||||||||||||||||
| tlv_gross_weight_unit | g | ||||||||||||||||||||||||||||||
| tlv_net_weight_label | Net weight | ||||||||||||||||||||||||||||||
| tlv_net_weight_unit | g | ||||||||||||||||||||||||||||||
| tlv_net_weight | 8,522 | ||||||||||||||||||||||||||||||
| tlv_1_type_pack | Box | ||||||||||||||||||||||||||||||
| tlv_1_type_pcs_pack | Units | ||||||||||||||||||||||||||||||
| tlv_1_pcs_pack | 1 |
-
