  • Transmodulator equipped with remultiplexing DVBS/S2 - DVBT, with CI
Single transmodulator DVBS/S2 - DVBT, with/without CI

Single transmodulator DVBS/S2 - DVBT, with/without CI

Transmodulator equipped with remultiplexing DVBS/S2 - DVBT, with CI

Transmodulator generating one COFDM multiplex from the multiplexing of the services available in up to 3 different TV SAT transponders.

These may be extracted from 2 different satellites (2 independent SAT inputs), or from a single satellite, using the headend's input loop.

Ref. 564201
Codes
Product Sheet
EAN13: 8424450160503
SKU
564201
Add to Compare
Loading...

Televes reserves the right to modify the product

Highlights
  • Total or selective removal of the services present in the received transponder, to avoid them being detected (and memorized) by the receivers (STB)
  • Editable TS_ID, which makes programme/service detection easier on the receiver (STB), since the channel scan is based on this identifier
  • LCN (Logical Channel Number) allows the assignment of the services present in the output to an LCN, which makes the ordering of the channels easier on the receivers (STB)
  • Provides information regarding both the occupation of each specific service and the global output occupation, which allows the optimization of the services being distributed
  • Can be remotely controlled using CDC (Headend control)
  • Device monitoring and signal status LEDs

Main features
  • Null packet insertion (“Stuffing”) allows the receiver (STB) to perform a faster scan
  • PID filtering allows the removal of undesired services from a Multiplex (enhanced occupation use); very interesting when combined with CAM use
  • S_ID editable to prevent the receivers (STB) in an installation from retuning when the output-Multiplex's services are modified
  • Editable Network_ID, Original Network_ID and Cell_ID allow the control of network identifiers
  • The encrypted satellite channels are transformed into free DTT services through the CI interface and the appropriate CAM module. Depending on the CAM type used (standard/professional), one or several services may be opened for free visualization

References 564201 564301
SAT INPUT SAT Input frequency range MHz 950...2150
Frequency steps 1
Input level dBμV 42 - 82
Loop-through losses dB ≤ 1,5
LNB powering Vdc 13V/17V/ OFF - 22KHz (ON/OFF)
Input return losses (typ.) dB > 10
Input impedance Ω 75
DVB-S Symbol rate (Modulation) Mbaud 2 - 42,5 (QPSK)
FEC inner code Viterbi (1/2, 2/3, 3/4, 5/6, 7/8)
FEC outer code RS (188/204)
Roll-Off factor % 35
DVB-S2 Symbol rate (Modulation) Mbaud 10 - 30 (QPSK, 8PSK)
FEC inner code LDPC (1/2, 1/3, 1/4, 2/3, 2/5, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10)
FEC outer code BCH (Bose-Chaudhuri-Hocquenghem)
Roll-Off factor % 20, 25, 35
DTT OUTPUT COFDM Modulation (Constellation) QPSK, 16QAM, 64QAM
Guard interval μs 1/4, 1/8, 1/16, 1/32
Scrambling DVB EN 300744
Interleaving DVB EN 300744
Convolutional code (FEC) Viterbi (1/2, 2/3, 3/4, 5/6, 7/8)
PCR Correction Sí
Services deleting Sí
Network_ID Sí
Original Network_ID Sí
Cell_ID Sí
TS_ID Sí
S_ID Sí
LCN Sí
Spectral inversion Normal, Inverted
Channel bandwidth Mhz 7,8
RF Output frequency 45 - 862
Frequency steps KHz 166 - 125 (user selectable)
Output level (max. typ.) dBμV > 80 ± 5
Output level regulation margin dB >15
Output loop-through losses   < 1,5
Output return losses (typ.) > 12
Output impedance Ω 75
GENERAL Powering voltage
 Vdc 24
Consumption mA 520 (0 CAM - 0 LNB)
620 (1 CAM - 0 LNB)
870 (0 CAM - 1 LNB)
1120 (1 CAM - 2 LNBs) 		530 (0 CAM - 0 LNB)
630 (1 CAM - 0 LNB)
880 (0 CAM - 1 LNB)
1130 (1 CAM - 2 LNBs)
Protection index
 IP 20

Physical data

Net weight: 1,000 g

Gross weight: 1,000 g

Width: 50 mm

Height: 219 mm

Depth: 180 mm

Main product weight: 958 g

Packing

Box 1 Units

Bucket 18 Units

More Information
tlv_reflog U3QC-S2-CI
tlv_tabla_especificaciones
References 564201 564301
SAT INPUT SAT Input frequency range MHz 950...2150
Frequency steps 1
Input level dBμV 42 - 82
Loop-through losses dB ≤ 1,5
LNB powering Vdc 13V/17V/ OFF - 22KHz (ON/OFF)
Input return losses (typ.) dB > 10
Input impedance Ω 75
DVB-S Symbol rate (Modulation) Mbaud 2 - 42,5 (QPSK)
FEC inner code Viterbi (1/2, 2/3, 3/4, 5/6, 7/8)
FEC outer code RS (188/204)
Roll-Off factor % 35
DVB-S2 Symbol rate (Modulation) Mbaud 10 - 30 (QPSK, 8PSK)
FEC inner code LDPC (1/2, 1/3, 1/4, 2/3, 2/5, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10)
FEC outer code BCH (Bose-Chaudhuri-Hocquenghem)
Roll-Off factor % 20, 25, 35
DTT OUTPUT COFDM Modulation (Constellation) QPSK, 16QAM, 64QAM
Guard interval μs 1/4, 1/8, 1/16, 1/32
Scrambling DVB EN 300744
Interleaving DVB EN 300744
Convolutional code (FEC) Viterbi (1/2, 2/3, 3/4, 5/6, 7/8)
PCR Correction Sí
Services deleting Sí
Network_ID Sí
Original Network_ID Sí
Cell_ID Sí
TS_ID Sí
S_ID Sí
LCN Sí
Spectral inversion Normal, Inverted
Channel bandwidth Mhz 7,8
RF Output frequency 45 - 862
Frequency steps KHz 166 - 125 (user selectable)
Output level (max. typ.) dBμV > 80 ± 5
Output level regulation margin dB >15
Output loop-through losses   < 1,5
Output return losses (typ.) > 12
Output impedance Ω 75
GENERAL Powering voltage
 Vdc 24
Consumption mA 520 (0 CAM - 0 LNB)
620 (1 CAM - 0 LNB)
870 (0 CAM - 1 LNB)
1120 (1 CAM - 2 LNBs) 		530 (0 CAM - 0 LNB)
630 (1 CAM - 0 LNB)
880 (0 CAM - 1 LNB)
1130 (1 CAM - 2 LNBs)
Protection index
 IP 20
tlv_diferencias Single
tlv_ean 8424450160503
tlv_dim_product_x 50
tlv_dim_product_x_label Width
tlv_dim_product_x_unit mm
tlv_dim_product_y 219
tlv_dim_product_y_label Height
tlv_dim_product_y_unit mm
tlv_dim_product_z 180
tlv_dim_product_z_label Depth
tlv_dim_product_z_unit mm
tlv_weight_product_label Main product weight
tlv_weight_product 958
tlv_weight_product_unit g
tlv_gross_weight_label Gross weight
tlv_gross_weight 1,000
tlv_gross_weight_unit g
tlv_net_weight_label Net weight
tlv_net_weight_unit g
tlv_net_weight 1,000
tlv_1_type_pack Box
tlv_1_type_pcs_pack Units
tlv_1_pcs_pack 1
tlv_2_pcs_pack 18
tlv_2_type_pack Bucket
tlv_2_type_pcs_pack Units

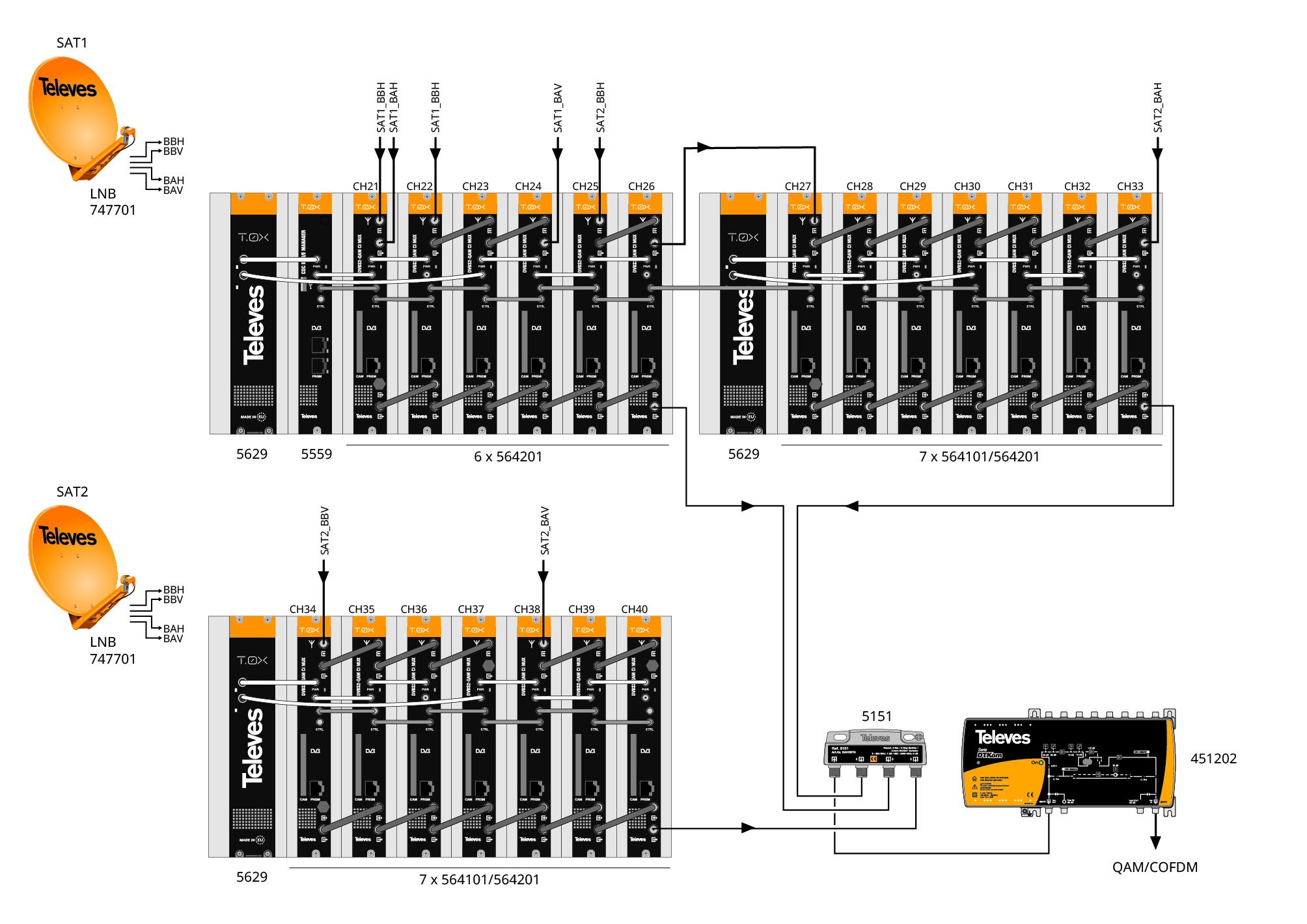

Block diagram
