HDMI+IR DigiDom Wireless Transmission 5GHz

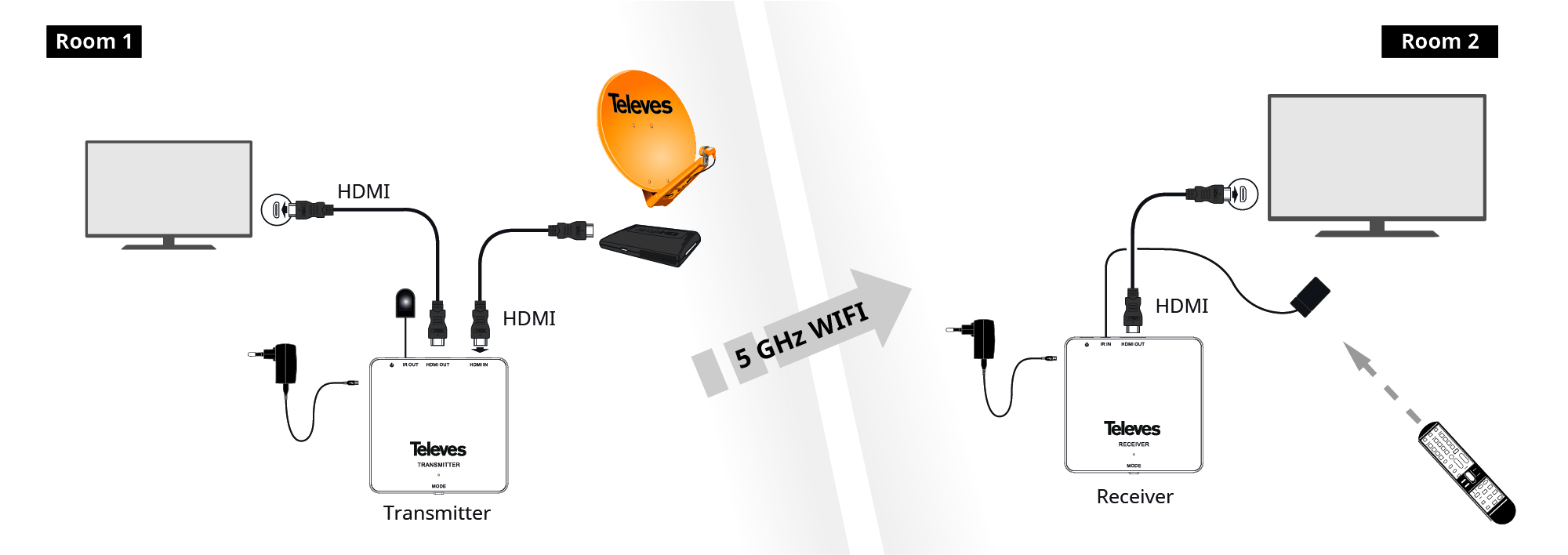

The system consists of a transmitter and a receiver that allows for the transport of an A/V signal (Usually TV, DVD, etc.) from the room where the source is to a second screen somewhere else. The integration of infrared (IR) transmission also allows for the remote control of the source from the second room.

Besides transmitter and receiver (with feeder), the kit includes IR extension and wall support.

Ref. 716701
Codes
Product Sheet
EAN13: 8424450201336
SKU
716701
Add to Compare
Loading...

Televes reserves the right to modify the product

Highlights
  • Transmission on the WiFi 5GHz band
  • Quick and easy solution to install to access contents (satellite set top box, DVD player, CCTV camera, etc) any where around the house, with no need to install new cables
  • Ideal for instances where it is not possible to run coaxial cable to the TV
  • The loop-through feature allows you to watch the signal on both rooms simultaneously
  • Low power consumption

Main features
  • Wireless Transmission of HDMI up to 1080p
  • Wireless Transmission of 3D HDTV
  • HDMI pass.throug output for simultaneous local viewing.
  • Room to room HD Wireless Transmission
  • Range up to 30 meters
  • 30 ~ 60KHz IR

HDMI
HDMI High Speed
Resolution
HD 1080p/60Hz
Frequency Range
WiFi 5GHz band
Channel Bandwidth
 MHz 20 or 40
RF output power
 dBm 10 ± 1
Security
HDCP 2.0 based encryption
Distance m ≤30 (no walls)
Latency seg <0,5
Antenna Type
Dual PCB
Data Rate
 Video Gbps ≤3
Audio Mbps ≤18
Supply voltage
 V
5
A 1
IR Carrier
 KHz 30 ~ 60

Physical data

Net weight: 360 g

Gross weight: 360 g

Packing

Box 1 Units

Carton 5 Units
