  • 8-output YEDFA optical amplifier with WDM, 1RU rack 19", 1550 nm, Po 17dBm
8-output YEDFA optical amplifier with WDM, 1RU rack 19

8-output YEDFA optical amplifier with WDM, 1RU rack 19", 1550 nm, Po 20dBm

32-output YEDFA optical amplifier with WDM, 1RU rack 19

32-output YEDFA optical amplifier with WDM, 1RU rack 19" 1550 nm, Po 20dBm

8-output YEDFA optical amplifier with WDM, 1RU rack 19", 1550 nm, Po 17dBm

Optical device that consists of an amplifier and multiplexer (WDM). It amplifies the 1550 nm optical signal, producing an optical output power of 17 dBm.
It features eight 1310/1490 nm inputs that multiplex the amplified 1550 nm signal, providing eight 1310/1490/1550 nm outputs, making it suitable for video overlay distribution in large size splitting GPON optical networks. At the same time, it includes two Hot-swappable power supplies.
Based on YEDFA (Erbium and ytterbium doped fiber) technology, it provides a high gain, a higher optical power and a low noise factor.
Ref. 769616
Codes
Product Sheet
EAN13: 8424450284001
SKU
769616
Add to Compare
Loading...

Televes reserves the right to modify the product

Highlights
  • High-optical output power amplifier
  • Equipped with WDM for the multiplexing of RF Overlay with GPON signals
  • -10 dBm to +10 dBm input range
  • Status LED indicators
  • Hot-swappable double power supply: subscriber service is not interrupted
  • Compatible with OLT512EVO (ref. 769403)

Main features
  • 1RU for rack 19"
  • Suitable for medium/large size optical networks
  • SC/APC optical connectors

Number of input optical ports RF Overlay1
Number of optical ports DATA (GPON)8
Number of output optical ports8
Wavelength (@RF Overlay)nm 1540 ... 1560
GPON Wavelength (@Upstream)nm1310
GPON Wavelength (@Downstream)nm1490
Optical input power RF Overlay MindBm-10
Optical input power RF Overlay MaxdBm10
Optical output power RF OverlaydBm17
Noise figure MaxdB5.5
Optical return lossesdB-40
GPON Insertion losses MaxdB1
C/NdB51
CSO MaxdB-65
CTB MaxdB-65
Optical connectorsSC/APC
Protection index (IP)20
Operating temperature°C -5 ... 45
Mains frequency50 Hz / 60 Hz
PSU input voltageVac 110 ... 230
Max PSU current inputmA350
PSU input power MaxW20.5

* Measurements made with: external modulator transmitter, 40km fiber, optical input power to the receiver of -0.6dBm

Physical data

Net weight: 4,158 g

Gross weight: 5,442 g

Width: 482 mm

Height: 46 mm

Depth: 380 mm

Main product weight: 4,158 g

Packing

Box 1 Units

More Information
tlv_reflog OV1U17WDMA8
tlv_tabla_especificaciones
Number of input optical ports RF Overlay1
Number of optical ports DATA (GPON)8
Number of output optical ports8
Wavelength (@RF Overlay)nm 1540 ... 1560
GPON Wavelength (@Upstream)nm1310
GPON Wavelength (@Downstream)nm1490
Optical input power RF Overlay MindBm-10
Optical input power RF Overlay MaxdBm10
Optical output power RF OverlaydBm17
Noise figure MaxdB5.5
Optical return lossesdB-40
GPON Insertion losses MaxdB1
C/NdB51
CSO MaxdB-65
CTB MaxdB-65
Optical connectorsSC/APC
Protection index (IP)20
Operating temperature°C -5 ... 45
Mains frequency50 Hz / 60 Hz
PSU input voltageVac 110 ... 230
Max PSU current inputmA350
PSU input power MaxW20.5

* Measurements made with: external modulator transmitter, 40km fiber, optical input power to the receiver of -0.6dBm
tlv_ean 8424450284001
tlv_dim_product_x 482
tlv_dim_product_x_label Width
tlv_dim_product_x_unit mm
tlv_dim_product_y 46
tlv_dim_product_y_label Height
tlv_dim_product_y_unit mm
tlv_dim_product_z 380
tlv_dim_product_z_label Depth
tlv_dim_product_z_unit mm
tlv_weight_product_label Main product weight
tlv_weight_product 4,158
tlv_weight_product_unit g
tlv_gross_weight_label Gross weight
tlv_gross_weight 5,442
tlv_gross_weight_unit g
tlv_net_weight_label Net weight
tlv_net_weight_unit g
tlv_net_weight 4,158
tlv_1_type_pack Box
tlv_1_type_pcs_pack Units
tlv_1_pcs_pack 1

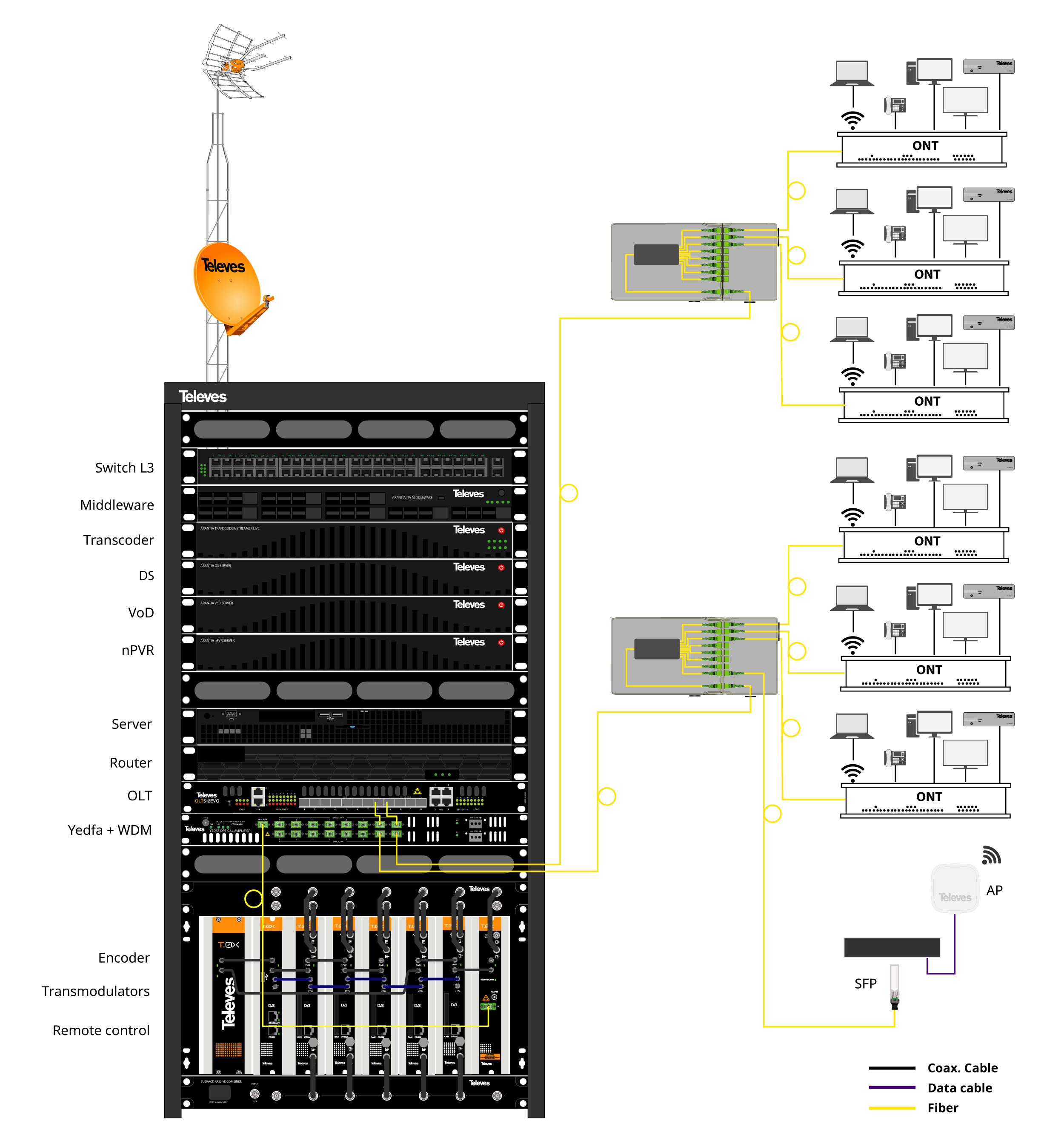

Block diagram
