MiniKom F broadband multiband amplifier 4 inputs: FM-BIII-UHF-SAT

MiniKom F broadband multiband amplifier 4 inputs: FM-BIII-UHF-SAT

MiniKom F broadband multiband amplifier 2 inputs: VHF/UHF-SAT (Terrestrial mix)

MiniKom F broadband multiband amplifier 2 inputs: VHF/UHF-SAT (Terrestrial mix)

MiniKom F line broadband multiband amplifier 1 input: VHF/UHF

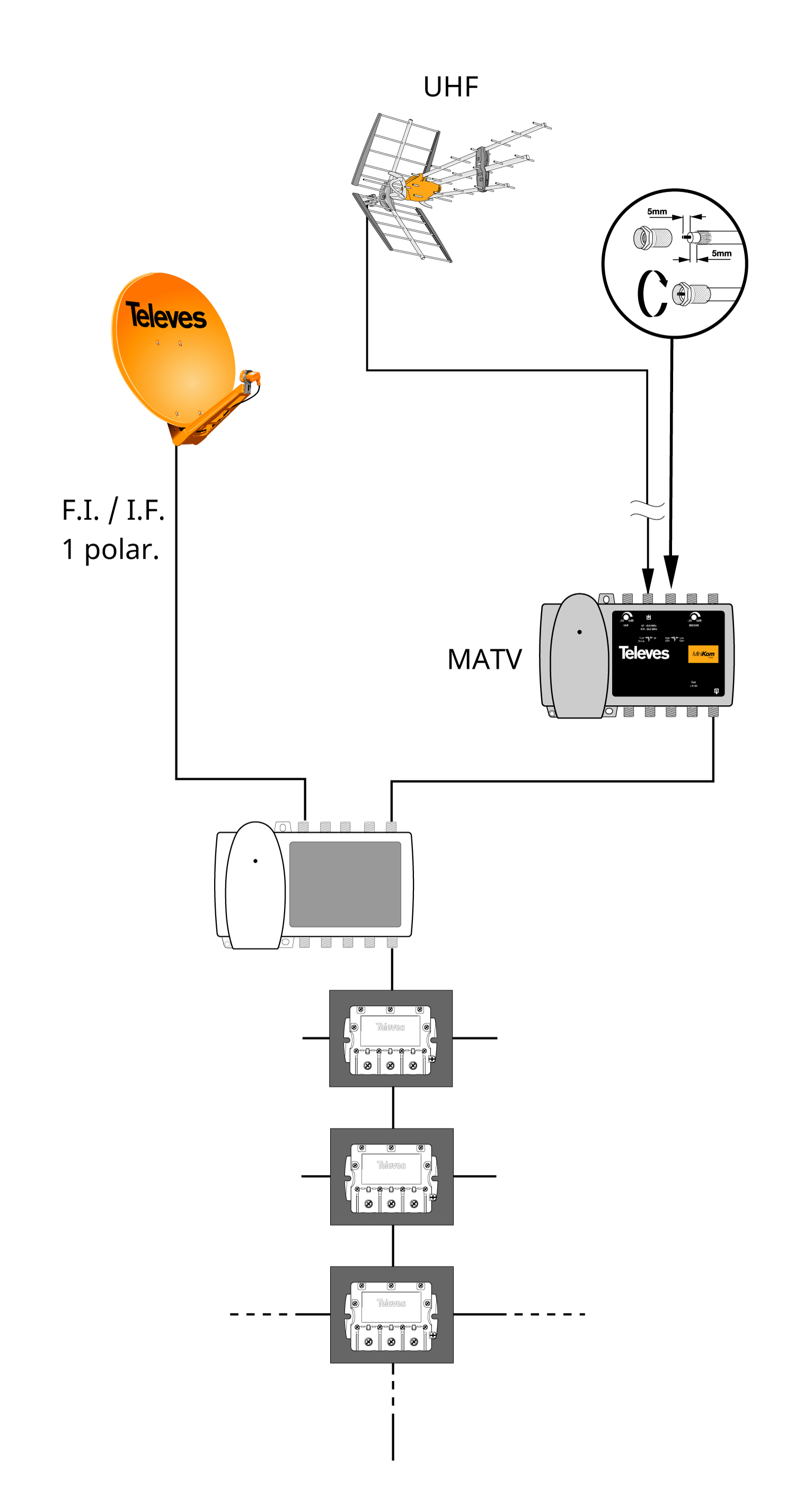

Line multiband amplifier (1 input/1 output) for MATV systems. Separate amplification guarantees the absence of intermodulation among inputs and independent attenuators per band (47 MHz- 454 MHz/ 470 MHz - 862 MHz).

Grouped product items
Ref. 537302 Plug type: EU plug
Codes
Loading...

Televes reserves the right to modify the product

Highlights
  • Separate amplification enhance the output level without causing any interference among bands
  • PIN-diode technology gain attenuators on each input (0 dB-20 dB)
  • Switched configurable gain (high/low), and high output level
  • High-screening Zamak chassis

Main features
  • “F” connectors
  • Output signal LED indicator
  • Test output (-30 dB)
  • Switch for pre-amplifier or BOSS system powering
  • Can be wall-mounted using screws

Ref. 537302
Bands
VHFUHF
Frequency rangeMHz
47 ... 454470 ... 862
High gaindB
30 38
Low gaindB
20 28
Noise figuredB
6 6
Output level EN50083 IMD3 2tones -60dBdBµV
121 123
Output level DIN45004BdBµV
113 116
Output level EN50083 IMD3 2tones -60dBdBµV
111 113
Output level EN50083 IMD2 2tones -60dBdBµV
103 --
Input attenuatordB 0 ... 20
Max current inputmA
70 70
Max. power consumptionW4.5
Max. currentmA45
Input voltageVac 220 ... 230
Mains frequency50 Hz / 60 Hz
Number of inputs1
Number of outputs1
Connectors"F" type
Operating temperature°C -5 ... 45
Protection index (IP)20

Physical data

Net weight: 1,020 g

Gross weight: 1,020 g

Width: 185 mm

Height: 114 mm

Depth: 64 mm

Main product weight: 960 g

Packing

Box 1 Units

Bucket 33 Units
