  • Outdoor CATV optical node equipped with Return Path transmitter and OLC technology 1200...1600 nm, Return: 1310 nm, Po 3 dBm

Outdoor CATV optical node equipped with Return Path transmitter and OLC technology 1200...1600 nm, Return: 1310 nm, Po 3 dBm

Highly configurable optical node for cable operators. Receives one optical signal in the 1200 nm -1600 nm range and restores it on the 2 RF output (54 MHz-1220 MHz) with amplification.
Equipped with a Return Path transmitter (5 - 42/5 - 300MHz) in the 1310 nm window, with 3 dBm optical power.
Equipped with OLC technology.
The aluminium frame enables outdoor installation (local power supply).

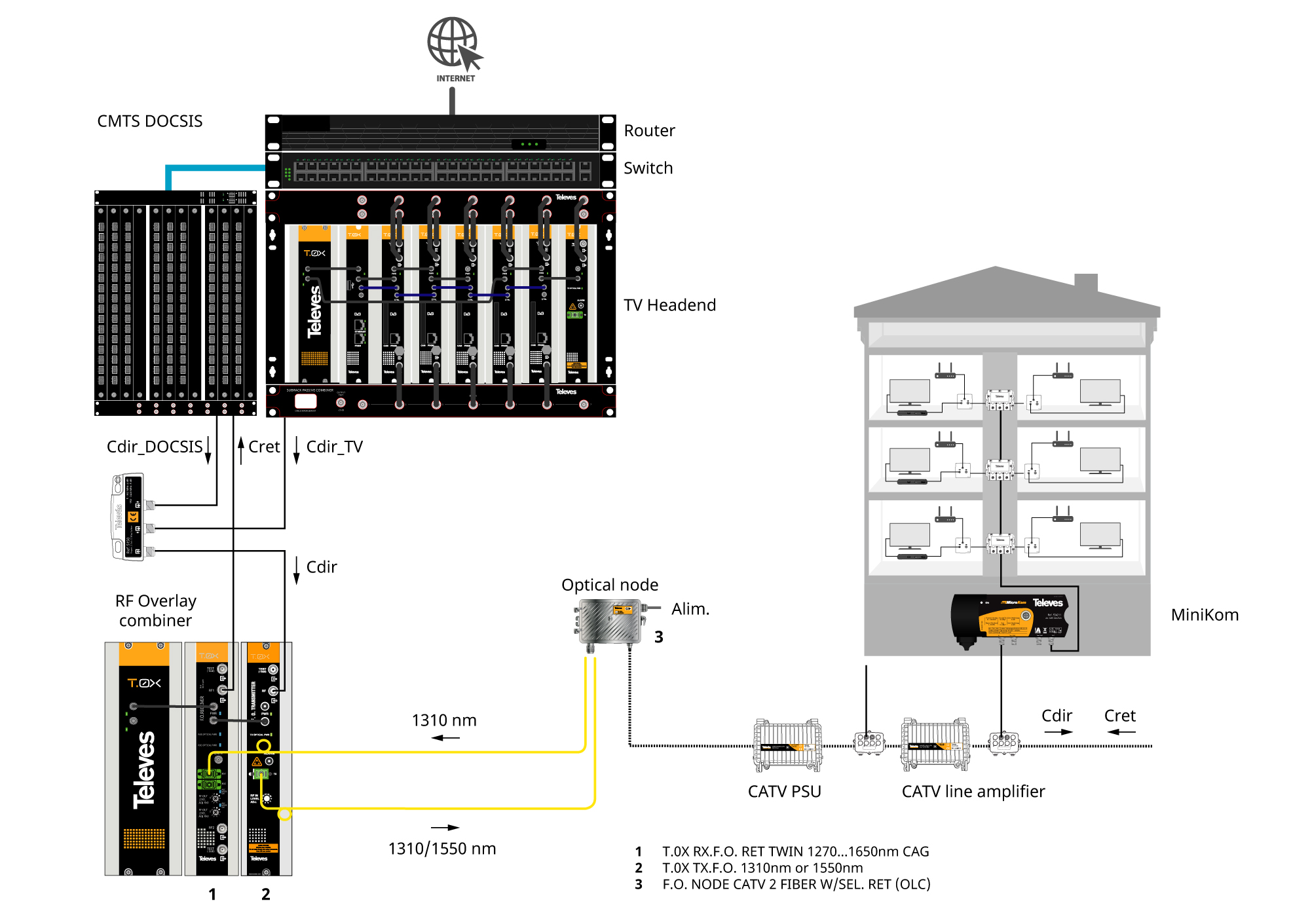

Perfect for RF Overlay, FTTB, and FTTC applications.
Ref. 231080
Codes
EAN13: 8424450168790
Loading...

Televes reserves the right to modify the product

Highlights
  • Selectable return path band:
    • Narrow band (NB): 5-42MHz (6 channels). Best combination of attenuators up to measure 16-17dBmV per channel
    • Wide band (WB): 5-300MHz (28 channels). Best combination of attenuators up to measure 10-12dBmV per channel
  • The OLC (Optical Level Control) technology automatically adjusts the parameters to achieve a constant output level, irrespective of the channel load
  • Equipped with pre-equalization, attenuation, and equalization controls to adapt the output signal to the coaxial network characteristics
  • High output voltage (RF amplification) and enhanced C/N
  • Wide reception optical range
  • Low power consumption

Main features
  • 1 or 2 selectable outputs
  • The test point avoids user service outage during maintenance
  • The F connectors can be replaced with 1/2"-cable adapters (ref.4121)
  • Local powering
  • SC/APC optical connectors, and F-type connectors for RF
  • Outdoor installation (IP65)

Foward Path
Optical stage
Wavelength nm 1200 - 1600
Optical return loss dB >40
Optical input level for OLC dBm -8 ... +1dBm
Max optical input power before damage dBm +4
Optical device type InGaAs pin photodiode
Optical connector type SC/APC
RF stage
Frequency range MHz 54 ... 1220
Output impedance Ohm 75
RF output return loss dB >10
Input attenuattor dB 4/6 select.
Inter stage attenuator dB 1/2/3/4/5/6/7/8 select.
Output level slope dB 4/9 select.
Flatness dB ± 0.75
Number of outputs
(selectable) 		no. 1 / 2
Typical output level in OLC range, port 1 dBmV 53
CNR dB >52
CSO dB >60
CTB dB >60
Test point, inside dB -30
RF connectors type 5/8 entry fitting with F adapter
Return Path
Optical stage
Wavelength nm 1310±20
Optical output level dBm 3
Optical return loss dB >40
Laser type type DFB (Class1M)
Optical connector type SC/APC
RF stage
Frequency range
(selectable) 		MHz NB: 5 ... 42
WB: 5 ... 300
Input impedance Ohm 75
RF input level dBmV 15 ... 30
RF input level control dB 0 ... -10 (step 2dB), -14, -18
General
Local Mains voltage V~ 110 ... 230
Mains frecuency range Hz 50/60
Max. current consumption mA 300
Max. power consumption W 16.5
Housing material Aluminium
Mains cord input type PG-7
Optical fiber input type PG-13,5
Operating temperature ºF 14 .... 113
Index operation IP 65

Physical data

Net weight: 1,779 g

Gross weight: 2,000 g

Width: 240 mm

Height: 195 mm

Depth: 90 mm

Main product weight: 1,707 g

Packing

Box 1 pcs.
