  • SMATV optical transmitter (without Return Path) 1310 nm, Po 6 dBm
SMATV optical transmitter (without Return Path) 1310 nm, Po 10 dBm

SMATV optical transmitter (without Return Path) 1310 nm, Po 10 dBm

SMATV optical transmitter (without Return Path) 1310 nm, Po 6 dBm

Produces an optical signal in the 1310 nm-window modulated by the input RF SMATV signal (47 MHz- 2400 MHz). The optical output power is 6 dBm.

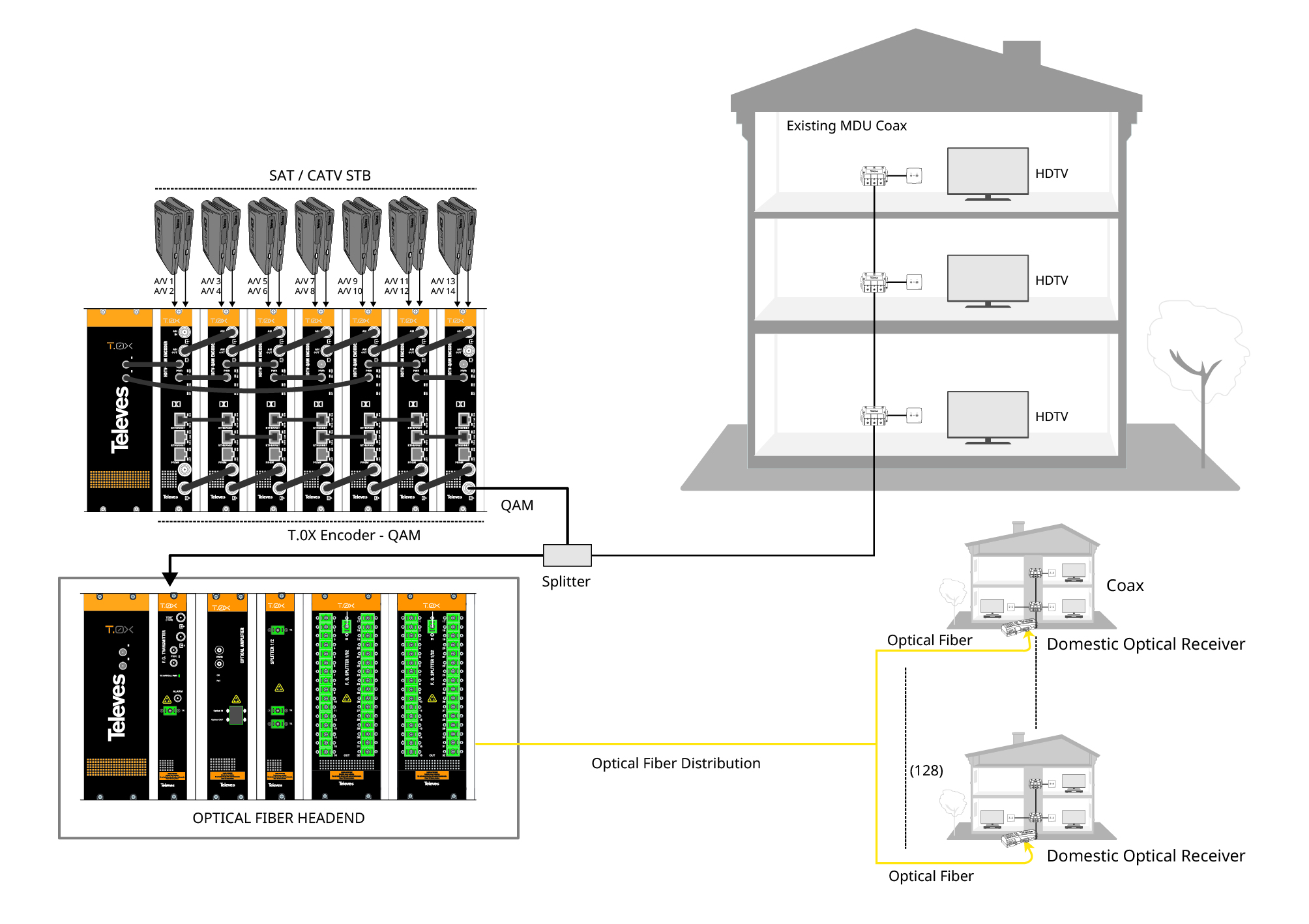

Perfect for RFoG / RF Overlay solutions.
Ref. 233306
Codes
Product Sheet
EAN13: 8424450169063
SKU
233306
Add to Compare
Loading...

Televes reserves the right to modify the product

Highlights
  • SMATV-compatible: up to 2400 MHz input bandwidth
  • RF input level control: optimization of the optical conversion quality parameters
  • Optical power drop alarm

Main features
  • Very low equivalent noise conversion
  • Easy to install and use
  • High energy efficiency
  • SC/APC optical connectors, and F-type connectors for RF

RF parameters
 Frequency range
 MHz 47 - 2400
Flatness 47-1200 MHz dB ±0.5
950-2400 MHz ±2
Impedance Ohm 75
Input level
 RF dBμV 73 - 93
SAT 63 - 83
Manual gain adjustment
 dB 0 ... 14 (2dB steps)
C/N dB >51
CSO dB >60
CTB dB >60
Optical Laser type MQW - DFB
Wavelength nm 1310 ± 10
Output optical power
 dBm 6
General RF connectors
 type “F” female
Optical connector
 SC/APC
Consumption 12 Vdc mA 260
24 Vdc 155
Operating temperature
 ºC -5 ... +45

Physical data

Net weight: 1,300 g

Gross weight: 1,300 g

Width: 50 mm

Height: 219 mm

Depth: 183 mm

Main product weight: 851 g

Packing

Box 1 pcs.
