This mast-mounted preamplifier features one input covering the entire TV band and can be used with any TV antenna (VHF, VHF/UHF or UHF). Unique to Televes, the new T-Force preamplifier family features automatic gain control ensuring an optimum amount of signal is delivered at all times despite changes in the receiving conditions and avoiding over or under amplification situations. The automatic gain control is independent per band so that adjustments to the UHF channels do not impact VHF channels and vice-versa. It features high gain and powerful output level while the high screening cast metal chassis ensures best-in-class electromagnetic shielding protection. Cast metal and high-grade ABS plastic construction for reliable outdoor installation withstanding the harshest elements.

This particular unit is an entirely new design optimized for the new repack TV frequencies.Its fine tuned steep filters reject any out of band interference, including FM and 5G signals over 608 MHz.

A low-consumption UL-listed power supply is included providing two outputs for convenient distribution to additional TV sets. This Televes preamplifier can also pass power to an active antenna when needed.

Ref. 560383

Codes

Product Sheet

EAN13: 8424450214961

SKU

560383

Skip to the end of the images gallery

Televes reserves the right to modify the product

Skip to the beginning of the images gallery

Highlights

Repack Ready: Fine tuned filtering avoids 5G cellphone interference and allows compatibility with ATSC 3.0 broadcasting (NextGenTV)
Automatic gain adjustment compensates fluctuations on the received signal ensuring the best output level is delivered and avoiding over/under amplification
Dual band amplification with independent automatic gain regulation per band. The VHF and UHF bands are independently and automatically adjusted
Maximum gain: 31dB (UHF, channels 14-36), 22dB (high VHF, channels 7-13), 22dB (low VHF, channels 2-6)
Very low noise and high output level (47dBmV UHF, 43dBmV VHF)
5G and FM filtering eliminates cellphone and radio interference
Cast metal and resistant ABS-plastic construction for reliable outdoor installation in the harshest conditions
High-screening metal chassis provides optimal electromagnetic shielding
ON/OFF switch to allow DC passing towards the input to power up active antennas or other preamplifiers

Main features

“F” connectors
ON/OFF switch to allow DC pass towards the input for the powering of a BOSS system
Easy mounting. Equipped with a plastic tie for mast mounting
Resistant ABS-plastic black case for outdoor installation

Mast amplifier:

Inputs/Bands			LowVHF/HighVHF/UHF
Frequency margin		MHz	54-88	174-216	470-608
Gain		dB	22		31
Automatic gain adjustment range		dB	0 ... 15
Output level	DIN 45004B	dBmV	43	47
	EN 60728-3 (IMD3 2CH -35dB)		51	55
Power supply		Vdc/mA	12 / 50
Max current through inputs	OFF	mA	0
	ON		70
Operating temperature		ºF	+23 ... 113
Protection index		IP	23

Power Supply Unit:

Frequency margin	Mhz	5 - 862
Through loss (typ.)	dB	1 Out	Main: 1.5 / Aux: ----
		2 Out	Main 4 / Aux: 4
Output interstage equalizer	V	12 ±1.5
Max. output current	mA	220
Min. output current	mA	30
Powering	V~ / Hz	108 - 132 / 50-60
Máx. Consumption	mA~ / W	65 / 3.6
Protection index	IP	20
Operating temperature	ºF	14 ... +113

Physical data

Net weight: 505 g

Gross weight: 552 g

Width: 113 mm

Height: 88 mm

Depth: 35 mm

Main product weight: 230 g

Packing

Box 1 pcs.

More Information

tlv_tabla_especificaciones

Mast amplifier:

Inputs/Bands			LowVHF/HighVHF/UHF
Frequency margin		MHz	54-88	174-216	470-608
Gain		dB	22		31
Automatic gain adjustment range		dB	0 ... 15
Output level	DIN 45004B	dBmV	43	47
	EN 60728-3 (IMD3 2CH -35dB)		51	55
Power supply		Vdc/mA	12 / 50
Max current through inputs	OFF	mA	0
	ON		70
Operating temperature		ºF	+23 ... 113
Protection index		IP	23

Power Supply Unit:

Frequency margin	Mhz	5 - 862
Through loss (typ.)	dB	1 Out	Main: 1.5 / Aux: ----
		2 Out	Main 4 / Aux: 4
Output interstage equalizer	V	12 ±1.5
Max. output current	mA	220
Min. output current	mA	30
Powering	V~ / Hz	108 - 132 / 50-60
Máx. Consumption	mA~ / W	65 / 3.6
Protection index	IP	20
Operating temperature	ºF	14 ... +113

tlv_ean

8424450214961

tlv_dim_product_x

113

tlv_dim_product_x_label

Width

tlv_dim_product_x_unit

tlv_dim_product_y

tlv_dim_product_y_label

Height

tlv_dim_product_y_unit

tlv_dim_product_z

tlv_dim_product_z_label

Depth

tlv_dim_product_z_unit

tlv_weight_product_label

Main product weight

tlv_weight_product

230

tlv_weight_product_unit

tlv_gross_weight_label

Gross weight

tlv_gross_weight

552

tlv_gross_weight_unit

tlv_net_weight_label

Net weight

tlv_net_weight_unit

tlv_net_weight

505

tlv_1_type_pack

Box

tlv_1_type_pcs_pack

pcs.

tlv_1_pcs_pack

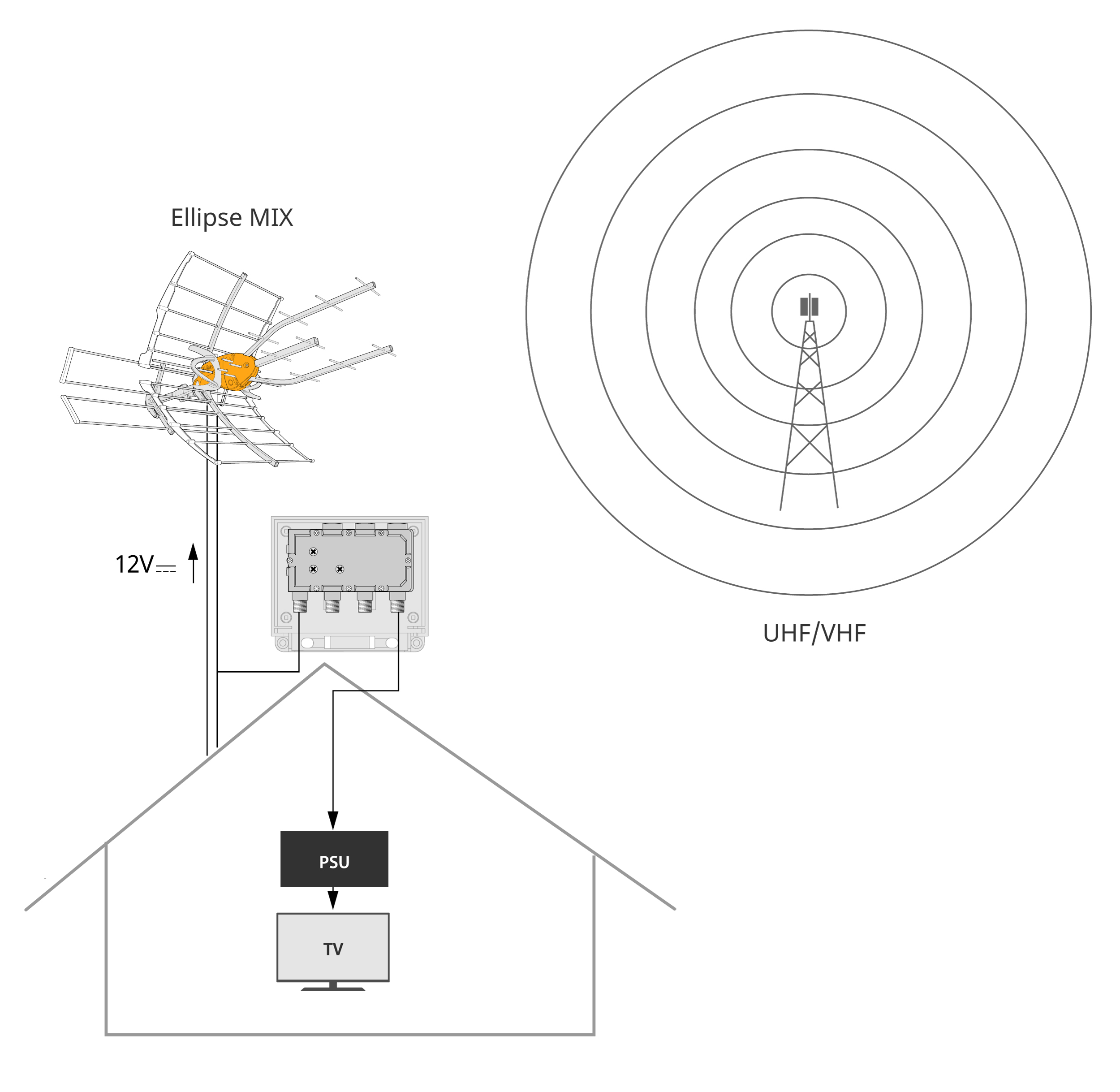

Receiving from one transmitting location using one antenna:

The amplifier will automatically adjust its gain for each band independently over time to ensure optimum signal delivery. No configuration/settings are needed.
The antenna used should be able to receive the desired frequency bands: LowVHF, HighVHF or UHF.

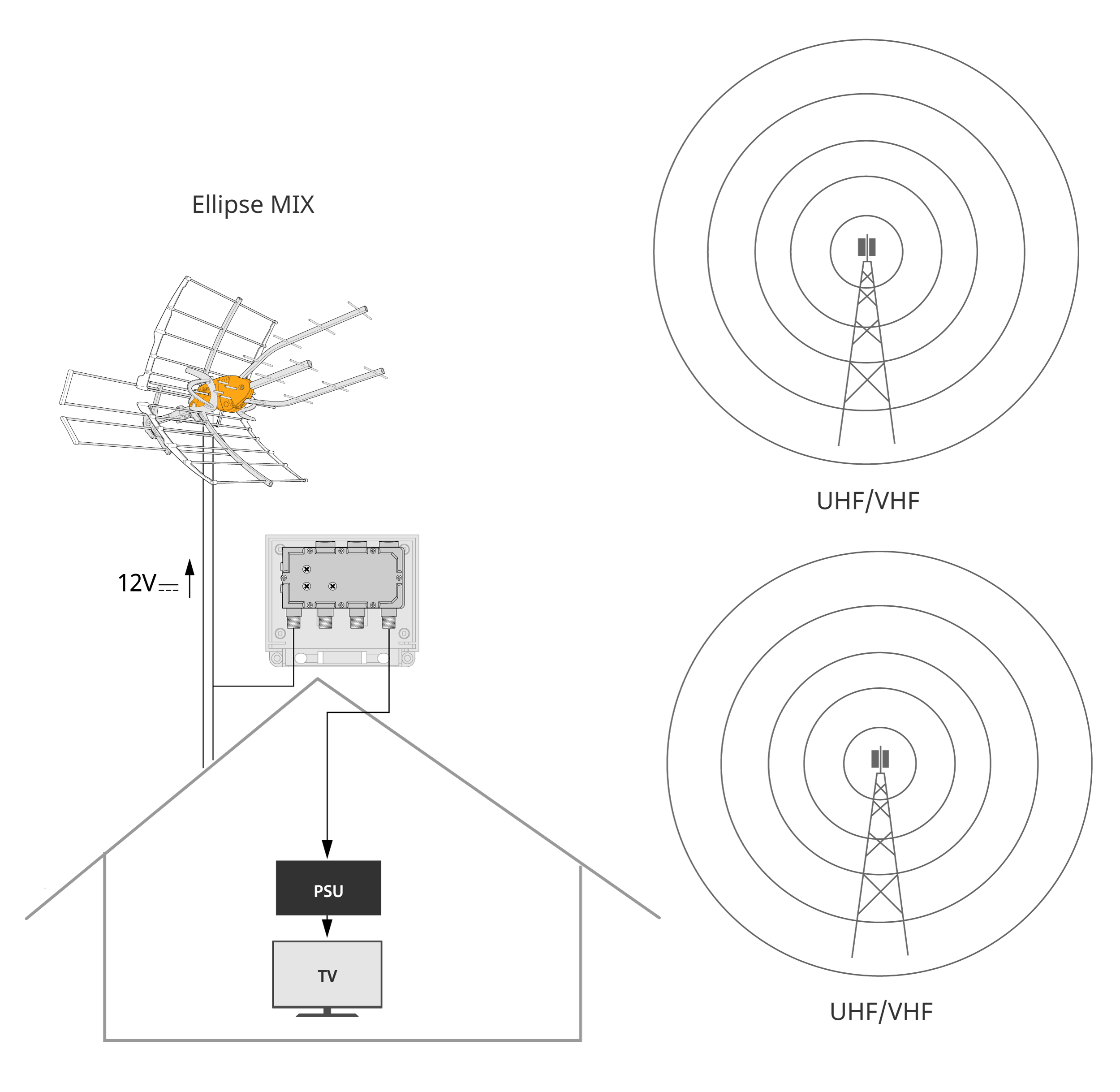

Receiving from two or more transmitting locations using one antenna:

The amplifier will automatically adjust its gain for each band independently over time to ensure optimum signal delivery. No configuration/settings are needed.
The antenna used should be able to receive the desired frequency bands: LowVHF, HighVHF or UHF.

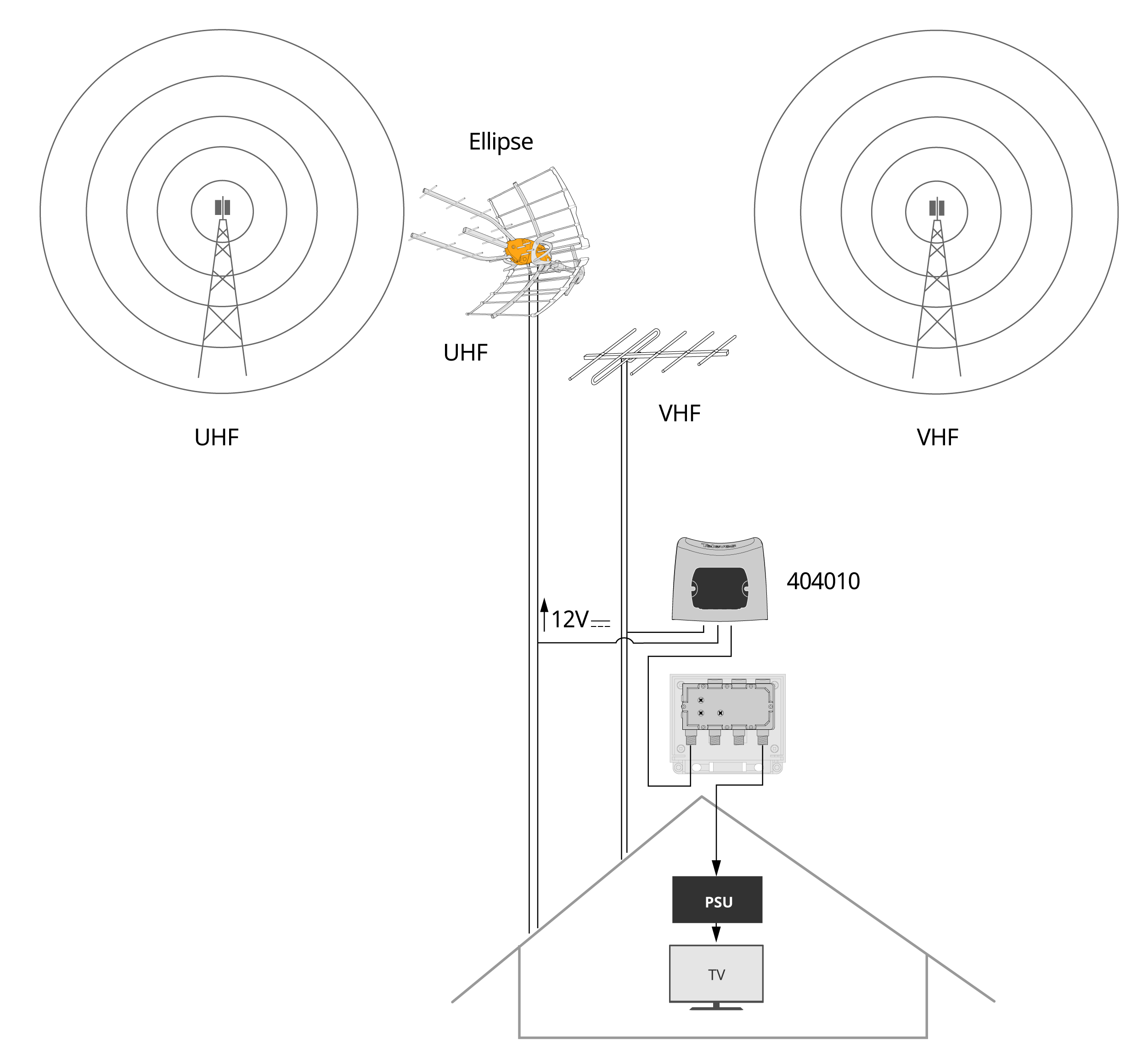

Dedicated VHF and UHF antennas in fringe reception scenarios:

To optimize the signal quality in fringe situations and when band dedicated UHF only and VHF only antennas are used, it is recommended to combine the antennas singals with a VHF/UHF diplexer (Ref. 404010) and connect the resulting feed to the amplifier
