Modulator Encoder QAM (Annexes A and B)

Home
Modulator Encoder QAM (Annexes A and B)

Modulator Encoder QAM (Annexes A and B)

Generate your own DTT content in High Definition

HDTV Encoder/Modulator range providing MPEG-2 or H.264 encoding with rates up to 1080 p. The range includes several modules equipped with 2 HMDI and component video inputs, one module equipped with 2 component video inputs, and one module equipped composite video inputs; all of them produce a single RF QAM output channel in HDTV to be distributed on a coaxial infrastructure. They support Dolby® Digital audio and include the Closed Captioning service, as well as an optional EAS interface with ASI input and output. The units are also equipped with an RF combiner and an integrated Ethernet switch to manage the whole system without the need for additional accessories.

Ref. 563811

Codes

Product Sheet

EAN13: 8424450167489

SKU

563811

Skip to the end of the images gallery

Televes reserves the right to modify the product

Skip to the beginning of the images gallery

Highlights

Perfect image and audio synchronization
Compatible with multiple formats, resolutions, and TV set sizes
Editing of all the modulation and encoding parameters
Configurable via web interface or PCT5.0 programmer
High output power without the need for extra amplification
Multi-standard output format
Excellent output quality (MER>40 dB)
Device monitoring and signal status LED diodes
Energy-efficient thanks to their low power consumption
Integrated RF combiner and Ethernet switch
Remote firmware update
Configuration via a web interface embedded in the encoder

Main features

Up to 1080 p MPEG-2 and H.264 coding
Real-time Dolby® Digital audio encoding
+55 dBmV RF output from 5 MHz to 1002 MHz (applications with return channel)
Optional EAS interface with L/R composite video and audio
Integrated ASI Input/Output for an easy management of the EAS signal

References				QUAD COMPOSITE TO QAM		DUAL COMPONENT TO QAM		DUAL HDMI/ COMPONENT TO QAM
References				563802	563821	563801	563811	563803	563831
INPUTS	VIDEO	Connectors		4 sets – 1x RCA for video (CVBS)		2 sets – 3x RCA for video (Y, Pb, Pr)		2 sets – 3x RCA for video (Y, Pb, Pr) 2 sets – 2x HDMI (unencrypted)
	AUDIO	Connectors		4 sets – 2x RCA for analog audio (L, R)		2 sets – 2x RCA for analog audio (L, R)
						2 sets – 1x RCA for digital audio (PCM)
						2 sets – 1x toslink for digital audio (Optical)
	CLOSED CAPTIONING	Connectors		4 sets – 1x RCA (CVBS in)		2 sets – 1x RCA (CC in)
	EAS	Connectors		n/a	3x RCA (CVBS,L,R)	n/a	3x RCA (CVBS,L,R)	n/a	3x RCA (CVBS,L,R)
	EAS	Trigger	Vdc	n/a	5-12 (Dry contact closure)	n/a	5-12 (Dry contact closure)	n/a	5-12 (Dry contact closure)
	ASI	Connectors		1x BNC
		Format		DVB-ASI
		Standard		ETSI EN 50083-9
	QAM	Connectors		1x “F” Female (loop-through mix input)
ENCODING PROFILE	VIDEO	Output Format		MPEG-2, H.264
		Resolution		480i & 576i		480i, 480p, 576i, 576p, 720p, 1080i (MPEG-2/H.264) & 1080p (H.264)
		Resolution		Supports auto-scan for input resolution
		Aspect Ratio		4:3, 16:9, and pass-through
		GOP		10, 12, 15, 16, 18, 20, 24 or 30
		Transport rate		Variable
		Video bit rate		Variable
	AUDIO	Output format		Dolby® Digital AC-3 or MPEG-1 Layer 2
		Sampling rate	KHz	48
		Output bitrate		Variable
	CLOSED CAPTIONING	Format		EIA-608		EIA-608, EIA-708
SALIDAS	QAM	Connectors		1x “F” Female
		Modulation standards		ITU-A: 16, 32, 64, 128, 256, 512, 1024 QAM
		Modulation standards		ITU-B: 64, 256 QAM
		Frecuency Range	MHz	5 – 1002 MHz (supports return path applications)
		Channel plans		CATV STD, HRC, IRC, Broadcast, Frequency
		Max output level	dBmV	55 (43 with loop-through)
		MER	dB	>40 (Typ)
		Spurious	dBc	-60
		Impedance	Ω	75
		I/Q Phase Error	º	< 1
		I/Q Amplitude Imbalance	%	< 1
	ASI	Connectors		1x BNC
	ASI	Format		DVB-ASI
ALARMS / MONITORING / CONTROL		Local control		Full configuration with LCD handheld programmer
		Local monitoring		EAS status LED
				LOOP status LED
				QAM status LED
				TEMP status LED
				CH1/2 – CH3/4 status LEDS	CH1/2 status LED
				Ethernet status LEDS
		Remote monitoring		Centralized web based remote control, management, alarms, and software upgrades
		Control		Daisy-chain built-in ethernet switch
GENERAL		Power supply	Vdc	24
		Power disipation	W	< 19.2 (@1080p)
		Operating Temperature	ºF/ ºC	32 ... 122 / 0 ... 50
		Storage Temperature	ºF/ ºC	-13 ... 158 / -25 ... 70

Physical data

Net weight: 1,243 g

Gross weight: 1,500 g

Width: 50 mm

Height: 219 mm

Depth: 213 mm

Main product weight: 1,143 g

Packing

Box 1 pcs.

More Information

tlv_slogan

Generate your own DTT content in High Definition

tlv_tabla_especificaciones

References				QUAD COMPOSITE TO QAM		DUAL COMPONENT TO QAM		DUAL HDMI/ COMPONENT TO QAM
References				563802	563821	563801	563811	563803	563831
INPUTS	VIDEO	Connectors		4 sets – 1x RCA for video (CVBS)		2 sets – 3x RCA for video (Y, Pb, Pr)		2 sets – 3x RCA for video (Y, Pb, Pr) 2 sets – 2x HDMI (unencrypted)
	AUDIO	Connectors		4 sets – 2x RCA for analog audio (L, R)		2 sets – 2x RCA for analog audio (L, R)
						2 sets – 1x RCA for digital audio (PCM)
						2 sets – 1x toslink for digital audio (Optical)
	CLOSED CAPTIONING	Connectors		4 sets – 1x RCA (CVBS in)		2 sets – 1x RCA (CC in)
	EAS	Connectors		n/a	3x RCA (CVBS,L,R)	n/a	3x RCA (CVBS,L,R)	n/a	3x RCA (CVBS,L,R)
	EAS	Trigger	Vdc	n/a	5-12 (Dry contact closure)	n/a	5-12 (Dry contact closure)	n/a	5-12 (Dry contact closure)
	ASI	Connectors		1x BNC
		Format		DVB-ASI
		Standard		ETSI EN 50083-9
	QAM	Connectors		1x “F” Female (loop-through mix input)
ENCODING PROFILE	VIDEO	Output Format		MPEG-2, H.264
		Resolution		480i & 576i		480i, 480p, 576i, 576p, 720p, 1080i (MPEG-2/H.264) & 1080p (H.264)
		Resolution		Supports auto-scan for input resolution
		Aspect Ratio		4:3, 16:9, and pass-through
		GOP		10, 12, 15, 16, 18, 20, 24 or 30
		Transport rate		Variable
		Video bit rate		Variable
	AUDIO	Output format		Dolby® Digital AC-3 or MPEG-1 Layer 2
		Sampling rate	KHz	48
		Output bitrate		Variable
	CLOSED CAPTIONING	Format		EIA-608		EIA-608, EIA-708
SALIDAS	QAM	Connectors		1x “F” Female
		Modulation standards		ITU-A: 16, 32, 64, 128, 256, 512, 1024 QAM
		Modulation standards		ITU-B: 64, 256 QAM
		Frecuency Range	MHz	5 – 1002 MHz (supports return path applications)
		Channel plans		CATV STD, HRC, IRC, Broadcast, Frequency
		Max output level	dBmV	55 (43 with loop-through)
		MER	dB	>40 (Typ)
		Spurious	dBc	-60
		Impedance	Ω	75
		I/Q Phase Error	º	< 1
		I/Q Amplitude Imbalance	%	< 1
	ASI	Connectors		1x BNC
	ASI	Format		DVB-ASI
ALARMS / MONITORING / CONTROL		Local control		Full configuration with LCD handheld programmer
		Local monitoring		EAS status LED
				LOOP status LED
				QAM status LED
				TEMP status LED
				CH1/2 – CH3/4 status LEDS	CH1/2 status LED
				Ethernet status LEDS
		Remote monitoring		Centralized web based remote control, management, alarms, and software upgrades
		Control		Daisy-chain built-in ethernet switch
GENERAL		Power supply	Vdc	24
		Power disipation	W	< 19.2 (@1080p)
		Operating Temperature	ºF/ ºC	32 ... 122 / 0 ... 50
		Storage Temperature	ºF/ ºC	-13 ... 158 / -25 ... 70

tlv_diferencias

2 Component Video inputs (with EAS)

tlv_ean

8424450167489

tlv_dim_product_x

tlv_dim_product_x_label

Width

tlv_dim_product_x_unit

tlv_dim_product_y

219

tlv_dim_product_y_label

Height

tlv_dim_product_y_unit

tlv_dim_product_z

213

tlv_dim_product_z_label

Depth

tlv_dim_product_z_unit

tlv_weight_product_label

Main product weight

tlv_weight_product

1,143

tlv_weight_product_unit

tlv_gross_weight_label

Gross weight

tlv_gross_weight

1,500

tlv_gross_weight_unit

tlv_net_weight_label

Net weight

tlv_net_weight_unit

tlv_net_weight

1,243

tlv_1_type_pack

Box

tlv_1_type_pcs_pack

pcs.

tlv_1_pcs_pack

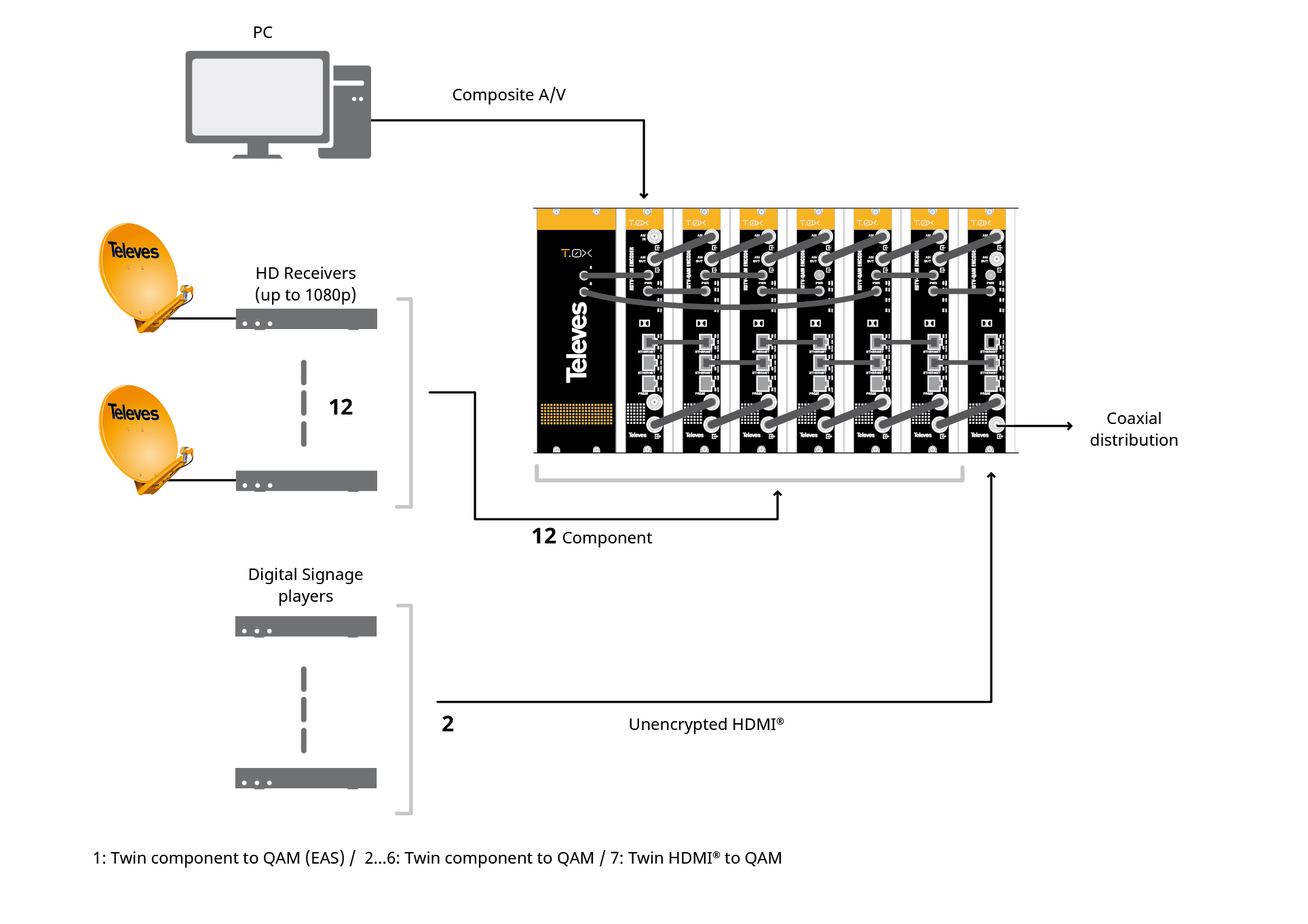

RESTAURANTS & BARS (WITH EAS)

Use the existing coax wiring to distribute full HD programming in restaurants and bars without rewiring or using HDMI or component matrix switchers. Easily add high definition in-house content using HDMI digital signage players, and take advantage of a simple PC connected to an EAS encoder to display special promotion announcements on every screen at the same time.

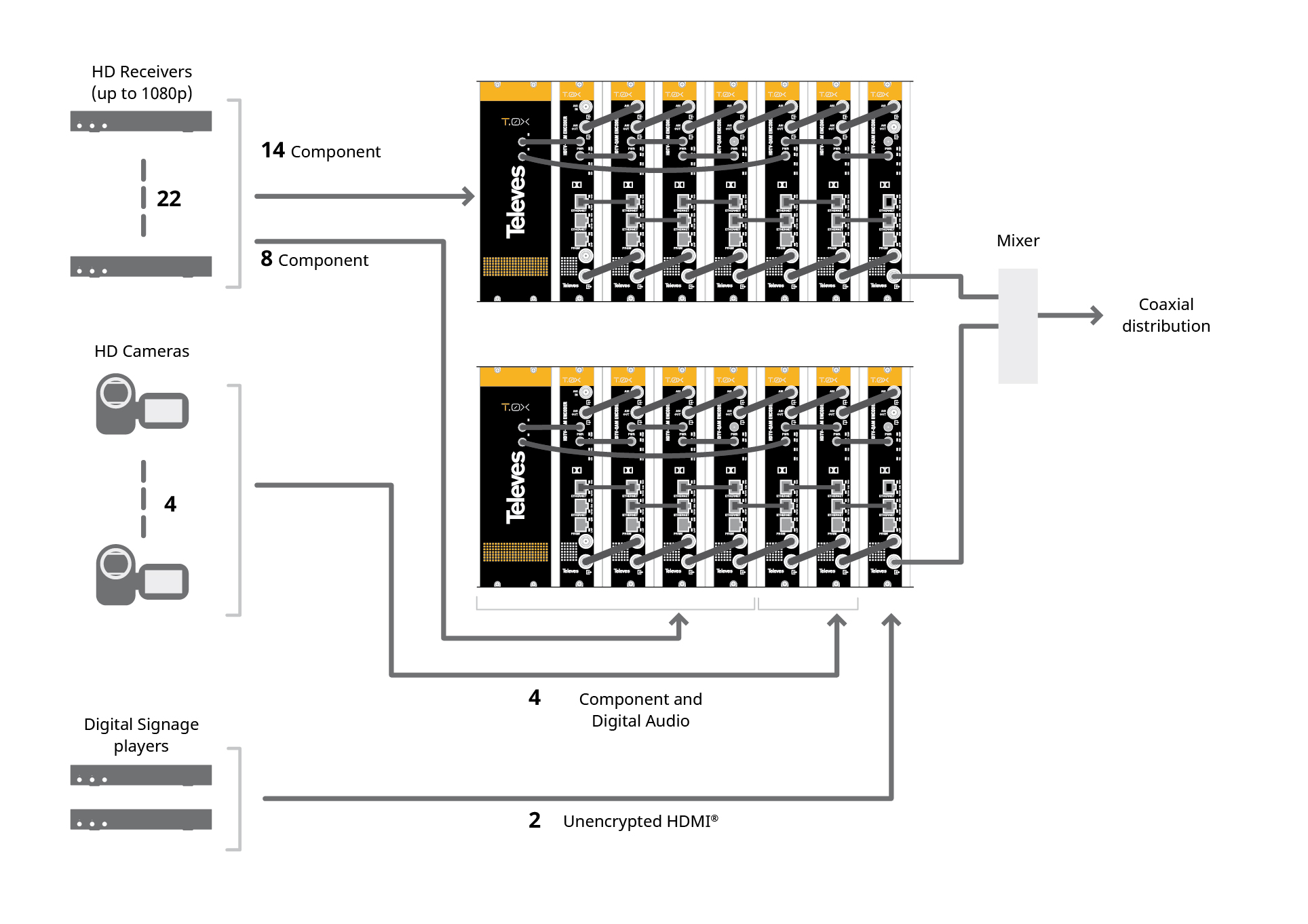

BALLPARKS, ARENAS & STADIUMS

Hundreds of inexpensive HDTV displays installed accross the stadium can be operated from a rack of HDTV Encoder/Modulators providing live HD video content from other games via cable or satellite receivers, live TV game action from the field HD cameras, and even additional digital signage channels displaying trivia, statistics or special announcements, all of it using the already existing cable distribution.

MULTIPLE DWELLING UNITS

This example shows various inputs including up to 1080p HD programming, security camera content, and locally generated digital signage announcement channels, delivered over the building’s single wire coax infrastructure without set top boxes to every existing and future HDTV in the property.

DIGITAL SIGNAGE (WITH EAS)

Broadcast an easily scalable number of digital signage channels to a potentially unlimited number of displays without using any additional devices at the HDTVs. Adding a single EAS module to the system provides plant-wide alert announcement capability, with builtin EAS signal distribution and RF combination.
