4GNOVA antenna 4G extended coverage

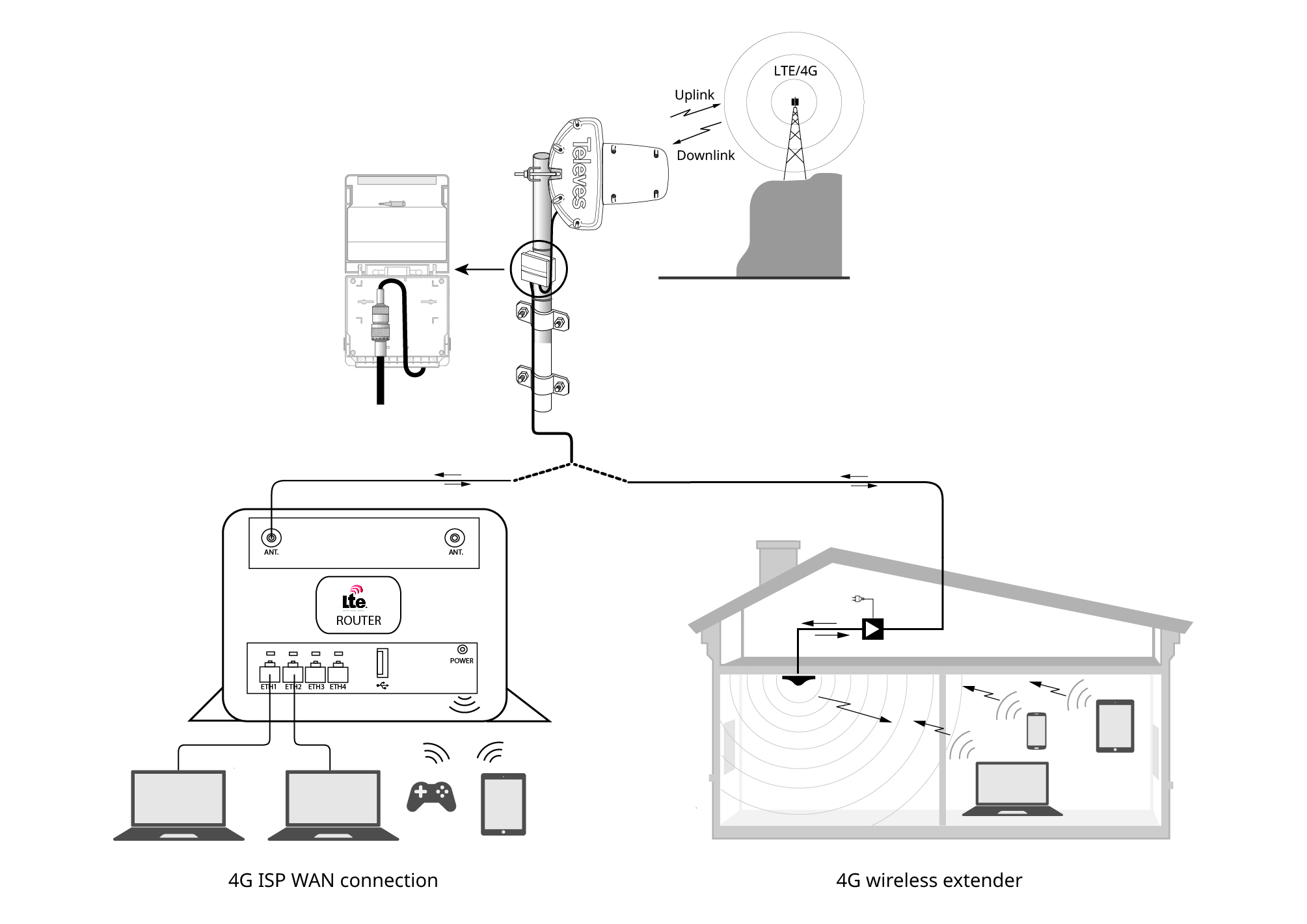

LTE/4G transmission and reception antenna for extended coverage in shielded areas or in areas where propagation conditions are difficult. The 4GNova antenna can be connected either to an LTE/4G router or to an indoor antenna. In the latter case, the 4G-enabled devices will have coverage without the need for high-power transmission, thus saving battery and protecting the user from excessive radiation.

The coaxial 50 Ohm cable is fixed to the antenna chassis. Two available lengths and two available connector types.

Ref. 650101
Codes
Product Sheet
EAN13: 8424450173336
SKU
650101
Add to Compare
Loading...

Televes reserves the right to modify the product

Highlights
  • Passive antenna for 4G extended coverage, enhancing the operator's network connection quality
  • Mobile 4G devices are more efficient in terms of power and consumption
  • Optimized response on both the Uplink and the Downlink
  • A telephone antenna on a printed circuit board: avoids feature alterations and ensures mechanical quality
  • Passive antenna, no power consumption

 Polarisation Horizontal / Vertical
 Frequency band
 Mhz  698...960 1700...2700
 Gain dBi 7,5 7
 F/B ratio
 dB >18 >20
 Impedance Ohm 50
 Windload N 69,6 (@80miles/h)
95,7(@93miles/h)
 Protection index
 IP 53
 Mast diameter
 in 0.78...1.97

Physical data

Net weight: 1,407 g

Gross weight: 1,407 g

Width: 348 mm

Height: 77 mm

Depth: 318 mm

Main product weight: 1,407 g

Packing

Box 1 pcs.

More Information
tlv_reflog 4GNOVA
tlv_tabla_especificaciones
 Polarisation Horizontal / Vertical
 Frequency band
 Mhz  698...960 1700...2700
 Gain dBi 7,5 7
 F/B ratio
 dB >18 >20
 Impedance Ohm 50
 Windload N 69,6 (@80miles/h)
95,7(@93miles/h)
 Protection index
 IP 53
 Mast diameter
 in 0.78...1.97
tlv_diferencias N Female connector and 0.7m cable
tlv_ean 8424450173336
tlv_dim_product_x 348
tlv_dim_product_x_label Width
tlv_dim_product_x_unit mm
tlv_dim_product_y 77
tlv_dim_product_y_label Height
tlv_dim_product_y_unit mm
tlv_dim_product_z 318
tlv_dim_product_z_label Depth
tlv_dim_product_z_unit mm
tlv_weight_product_label Main product weight
tlv_weight_product 1,407
tlv_weight_product_unit g
tlv_gross_weight_label Gross weight
tlv_gross_weight 1,407
tlv_gross_weight_unit g
tlv_net_weight_label Net weight
tlv_net_weight_unit g
tlv_net_weight 1,407
tlv_1_type_pack Box
tlv_1_type_pcs_pack pcs.
tlv_1_pcs_pack 1

Radiation pattern
