Overlight optical transmitter CWDM, Indoor use, Inputs: 2xSAT + 1xTERR, Output: 1530nm, Po 9dBm
Enhanced electronics and optical engineering to light up your TV
CWDM WideBand satellite and terrestrial optical transmitter specifically designed for point-to-point applications. This device receives the satellite signal from 2 RF LNBs corresponding to 2 independent satellites in the 250-2150 MHz range, as well as the terrestrial band signal. Subsequently, these signals are distributed over a single fiber output in the 1530 nm window with 9 dBm optical power.

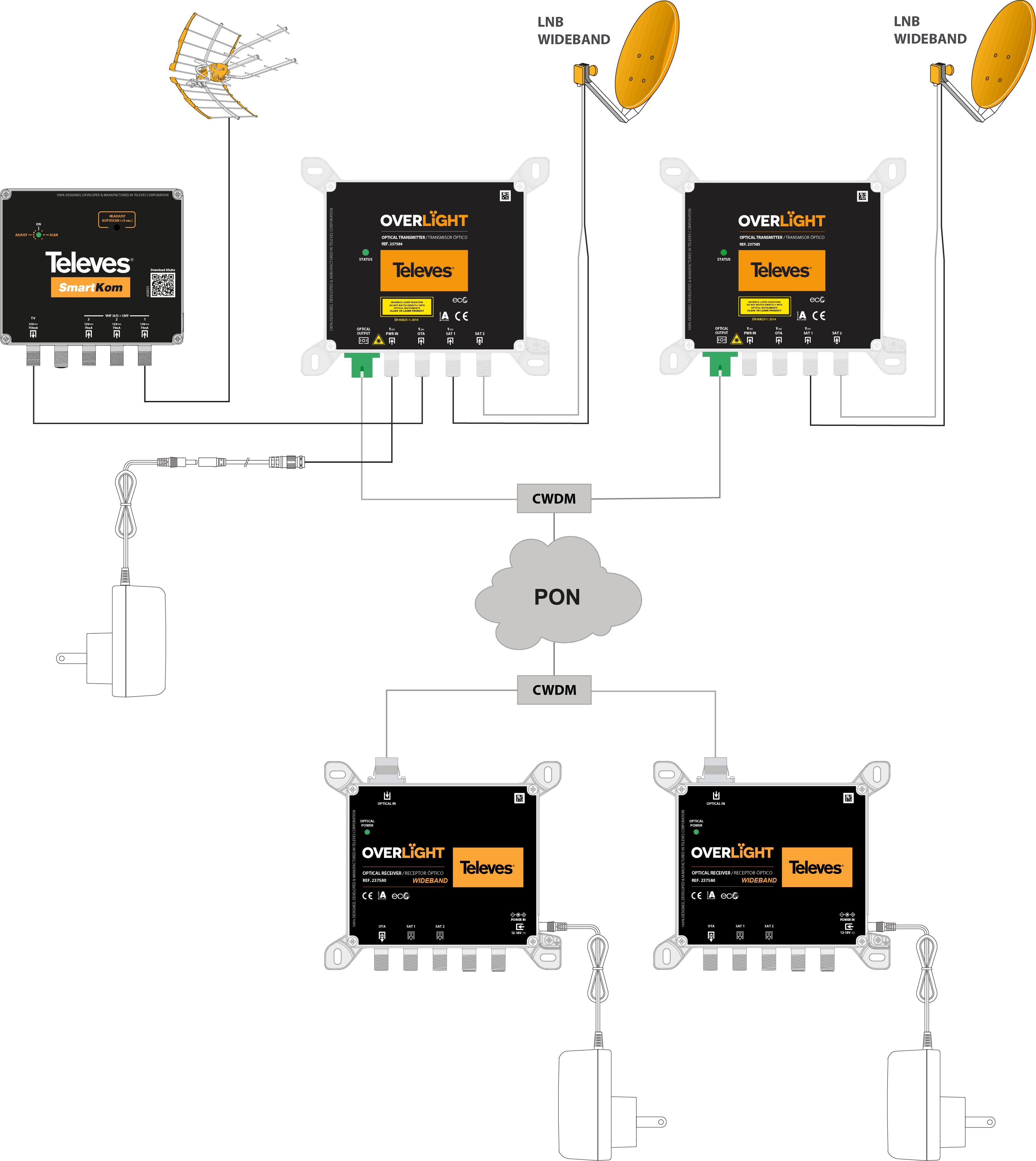

In combination with the other transmitters available in the range (23758x), it is possible to create a transmission system of up to 6 independent satellites.
Thanks to its optimized electronics and low losses, it allows to reduce the number of amplifiers required and simplifies deployment in the design of collective installations, preserving the signal quality throughout the process.

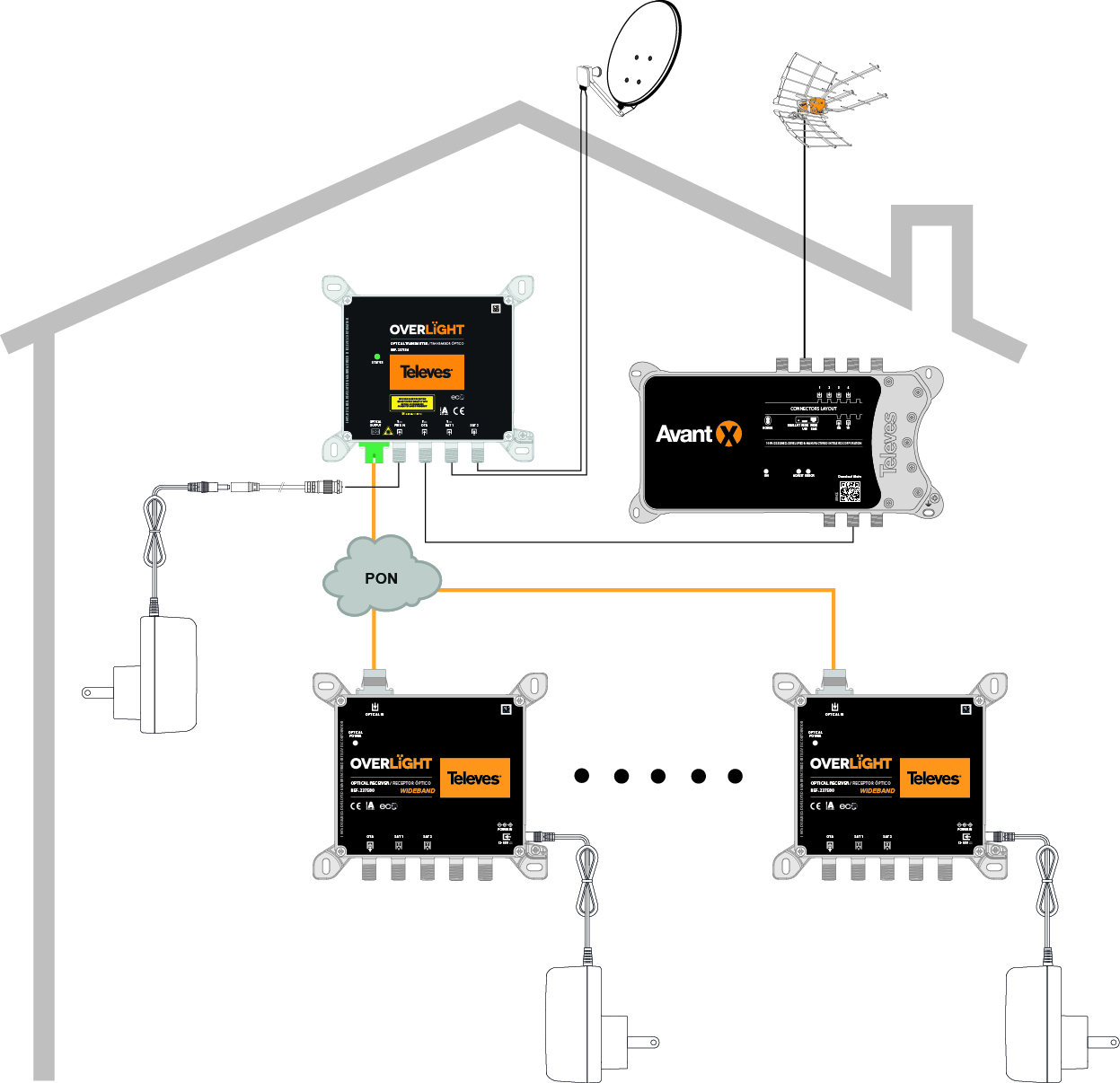

This device is part of the Overlight system, that distributes satellite and terrestrial signals to multiple users through a single optical fiber.
- High output level that makes it ideal for collective installations of up to 64 users
- Designed for the transmission of 2 satellites to up to 64 users. Combined with the existing 23758x transmitters, it is possible to deploy an installation capable of transmitting up to 6 satellites
- Low losses
- Optimized electronic behavior
- Very compact in dimensions and weight (137x126x45 mm)
- Designed for indoor installation
- Powering from an external power supply, via power input (F connector)
- 100% European design, quality, and manufacturing
- SC/APC optical connector
- F-type RF connectors
- High-screening Zamak chassis
| Inputs/Bands |
| ||||
|---|---|---|---|---|---|
| Frequency range | MHz |
| |||
| Input level | dBmV |
| |||
| Number of MUX for Input level |
| ||||
| MUX bandwidth for Input level | MHz |
| |||
| Powering per inputs | Vdc |
| |||
| Max. current pass | mA |
| |||
| Max. current pass total inputs | mA | 720 | |||
| Impedance | Ω | 75 | |||
| Laser | MQW-DFB uncooled | ||||
| Wavelength | nm | 1530 | |||
| Optical output power | dBm | 9 | |||
| RF connectors | "F" female | ||||
| Optical connectors | SC/APC | ||||
| Powering | Vdc | 12 ... 18 | |||
| Max. power consumption | W | 5.6 | |||
| Current consumption | mA | < 430 | |||
| Operating temperature | °F | 23 ... 113 | |||
| PSU input voltage | Vac | 100 ... 240 | |||
| Max PSU current input | mA | 600 | |||
| PSU output voltage | Vdc | 12 | |||
| Max PSU output current | A | 1.5 |
| tlv_slogan | Enhanced electronics and optical engineering to light up your TV | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tlv_tabla_especificaciones |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| tlv_ean | 8424450305409 |
-
